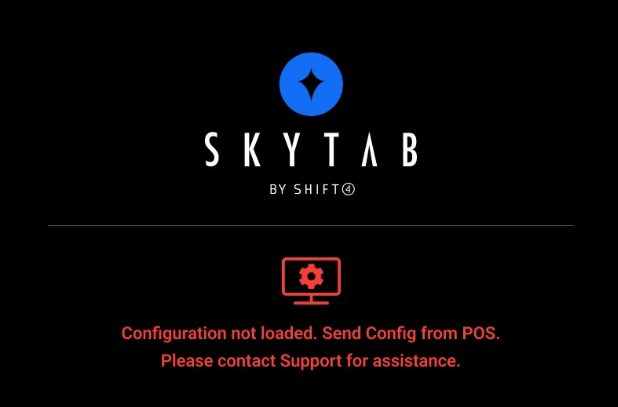

Resolve "Configuration not loaded. Send Config from POS" Error on SkyTab KDS

What is causing this Error?

This issue can be caused by network issues or an incorrect configuration of the KDS in the POS.

How do I resolve this Error?

1. Check Local Connection

   Using another device connected to your local network, verify that the device is connected to other devices on your network.
   You can use these steps to verify:

   1. Navigate to Manager > Settings > Hardware > Printers.

   2. In the Printers list, select a printer that is not attached to the POS station you are using.

   3. Tap Test Print.

      If your local network is not functioning, you will see an error similar to the one shown here. You will need to contact support or a technician to troubleshoot your network equipment.


      If you were able to test print successfully, this indicates the issue is isolated to your KDS station. Resend the KDS Configuration from SkyTab POS and check for network issues.

2. Resend the KDS Configuration from SkyTab POS

3. Network Issues


   Requirements:

   • Your IT Professional will need to complete/verify these settings.
   • You will need the login/password for your router.
   Once you have logged into your router, you will need to verify the following:
   • Your KDS and POS are on the same subnet
   • Your KDS has a valid IP address issued to it

4. Contact Support

   If you are unable to resolve this issue or need help, tap the Remote Support button on your KDS screen.

   1. Tap the gear icon to enter the Settings screen.

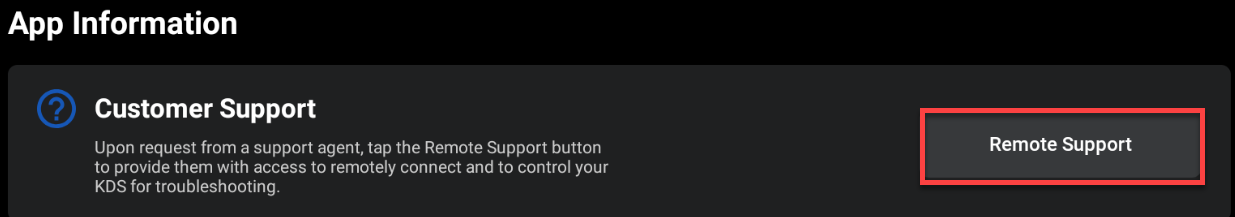

   2. Look for Customer Support under the App Information section.
