Use the SkyTab KDS Bump Bar

Description: Learn how to use the SkyTab KDS bump bar designed to support all of the power of KDS without needing a user to interact with the screen.

---

Visit the SkyTab KDS Bump Bar Specifications article for an overview.
Visit the SkyTab KDS Bump Bar Installation and Setup article for installation and setup information.

Bump Bar Usage

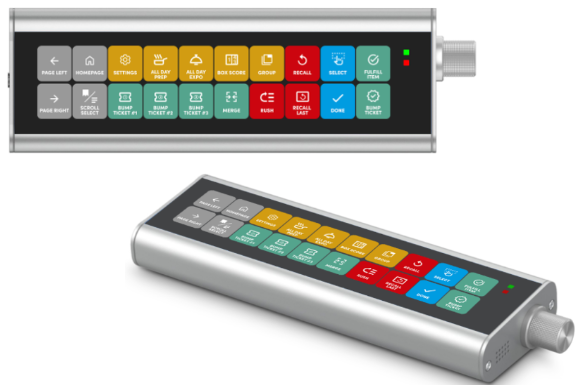

Once your KDS Bump Bar is installed and ready for use, the following guide details how to use the actions.

Key	Action
	Page Left / Page Right quickly switches between pages on the Ticket or Recall screens.
	Return to the Homepage.
	Scroll Select switches the scrolling action between scrolling through Items or whole Tickets.
	Settings will open the Settings screen. Note: While you can scroll through Settings on the page, you cannot currently use the Bump Bar to edit the settings - please use the touchscreen to manipulate the Settings.
	Bump Ticket #1 / #2 / #3 will immediately complete and bump the first, second, or third ticket on the Ticket screen to the Recall screen.
	All Day Prep opens the All Day panel in the Tickets screen to the Prep view.
	All Day Expo opens the All Day panel on the Ticket screen for the Expo view.
	Box Score opens the Box Score view. Note: The Box Score feature must be enabled in Settings to open.
	Merge opens the Merge Tickets view. Note: The ticket currently selected on the screen will be used to find any other applicable tickets to merge. Use the Scroll Select function to pick which tickets to merge.
	Group enables the Group function to combine like items within the Tickets screen. Note: Grouping will still follow the settings configured in the Settings screen.
	Rush will immediately move a ticket to the front of the queue and have it labeled and marked as RUSH. Note: The currently selected Ticket on the screen will be marked RUSH when this key is used.
	Recall opens the Recall screen view for scrolling and selecting which Ticket a user wants to recall to the active Tickets screen.
	Recall Last immediately recalls the last bump Ticket to the main Tickets screen.
	Use Select in certain screens to select any presented options.
	Use Done to complete any actions or close any other screens where Select may have been used. Example: When selecting Tickets to merge, use Done to complete the action and Merge the tickets.
	Fulfill Item will mark the highlighted Item as fulfilled. Note: If multiple fulfillment steps are enabled, such as Mark Items as Sent, use Fulfill Item to move through these fulfillment steps.
	Bump Ticket will immediately mark any ticket highlighted as Completed and move it to the Recall screen.
	Use the scroll wheel to navigate between Items or Tickets (see Scroll Select function) or scroll through options on the Settings page.
