Multi-System Setup for SkyTab POS

Description: Review how the SkyTab POS system is set up if utilizing two or more SkyTab POS systems.

---

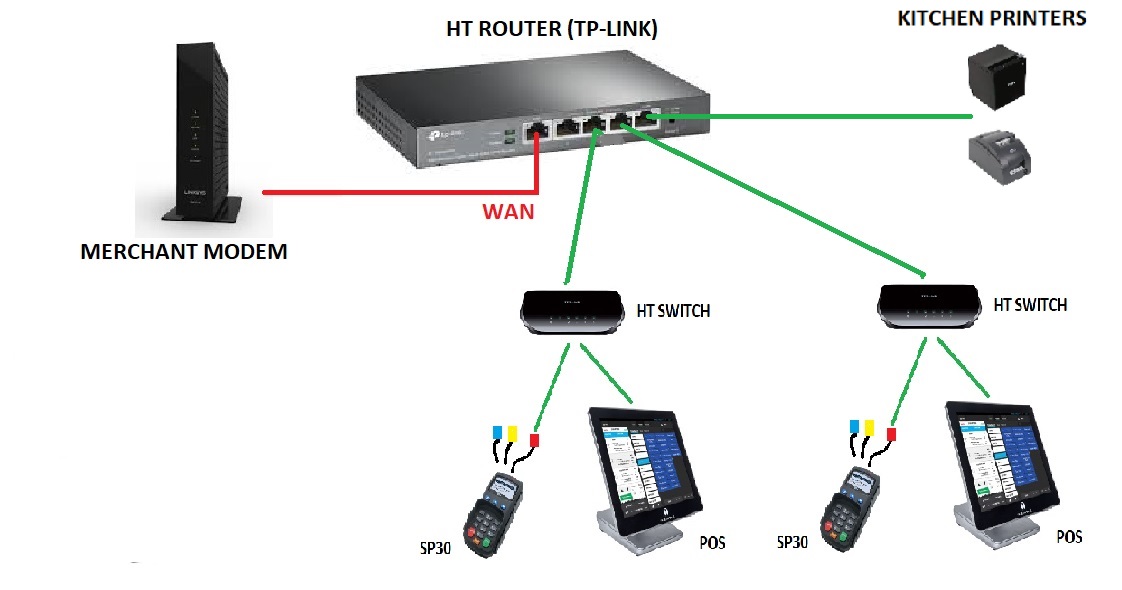

To begin, make sure that the Shift4-supplied router has an Ethernet cord connecting from the WAN port to your modem. From there:

1. Connect the kitchen printers to the HT Router (TP-Link).
2. Repeat the below steps for each POS system to be setup:
   1. Plug in one HT Switch to the HT Router (TP Link).
   2. Connect one PAX SP30 and one POS system to the HT Switch.
3. Once you have connected all systems to the appropriate switch, activate the system and use the Testing Screen to verify that the connection is in place.

For additional help with setting up a network, contact Shift4 Support.
