Connect the Elys L1400 SkyTab POS Workstation Terminal

Description: how to connect the Terminal Hub to your Elys L1400 SkyTab POS, attach accessories like receipt printers and barcode scanners, and power on the terminal.

---

Connect Accessories to the Terminal Hub

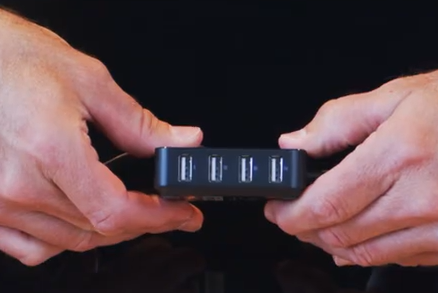

Use the Terminal Hub to connect accessories such as a receipt printer or barcode scanner.

• Plug each accessory into an available USB port on the Terminal Hub.

  Important: The second USB port on the SkyTab POS terminal itself is only for connecting a Customer-Facing Display (CFD).

Connect the Terminal Hub to the POS Terminal

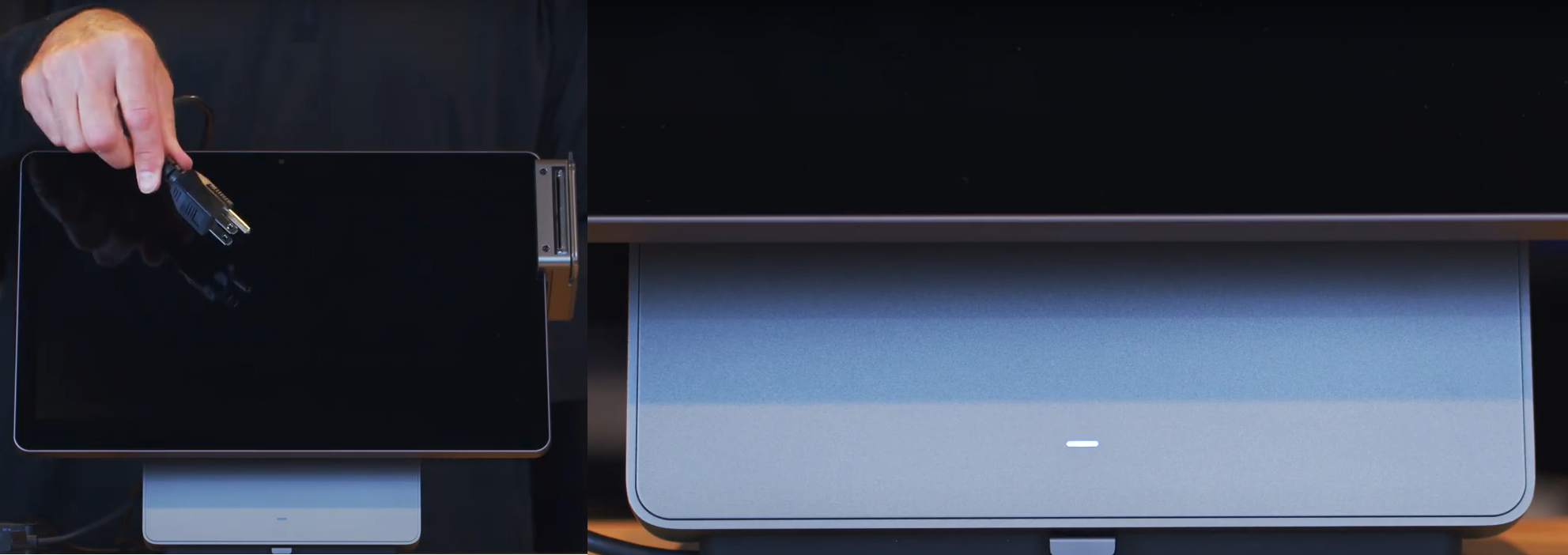

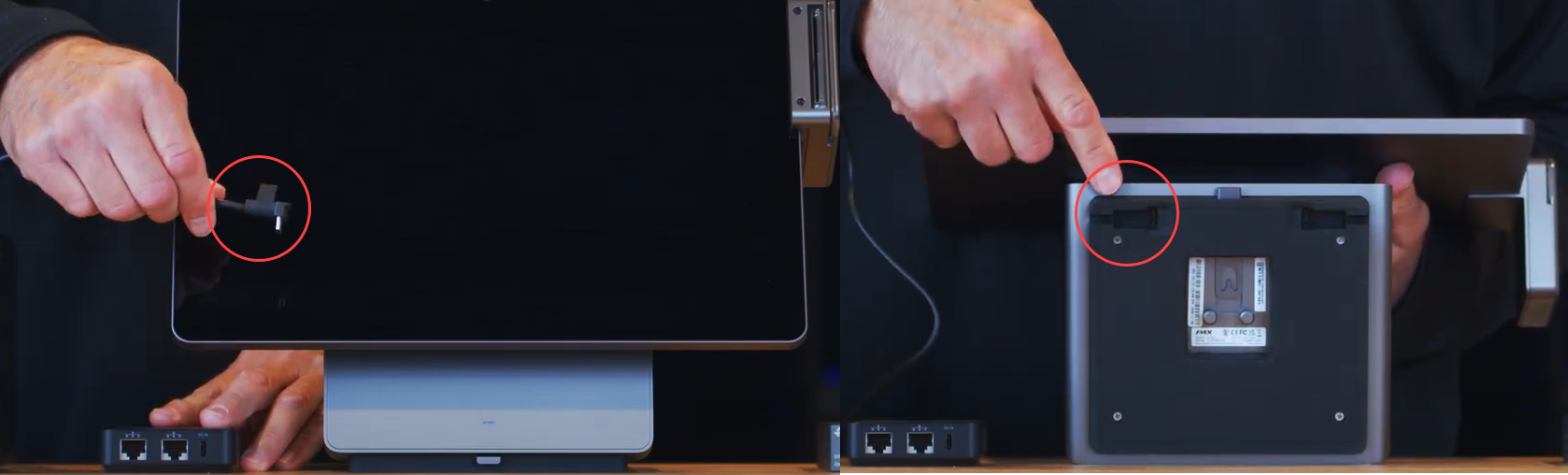

• Insert the Hub's USB Type-C cable into one of the ports underneath the SkyTab POS Terminal.


Power On the SkyTab POS Terminal

In this step, you’ll connect the power adapter to the Terminal Hub, which powers on the SkyTab POS terminal.

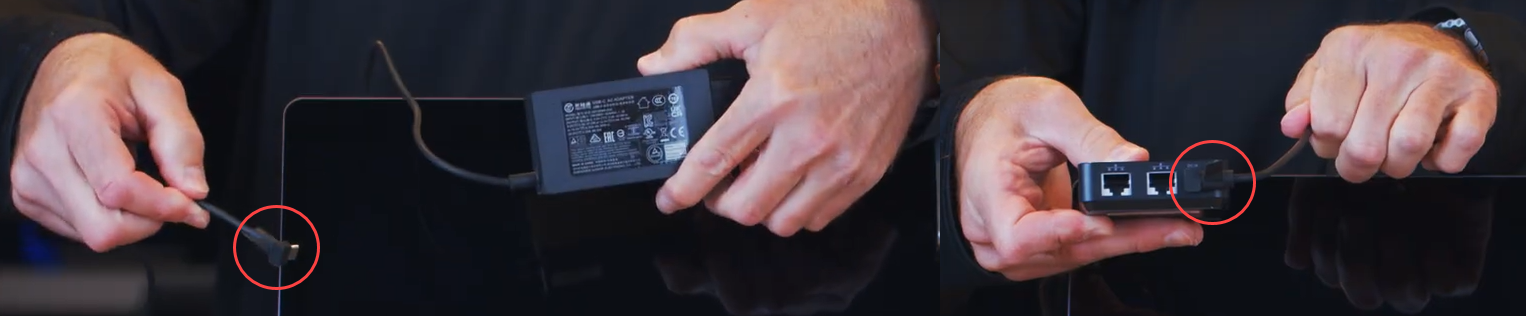

1. Insert the power adapter's USB-C cable into the Terminal Hub.

2. Plug the other end of the power cable into a power outlet.

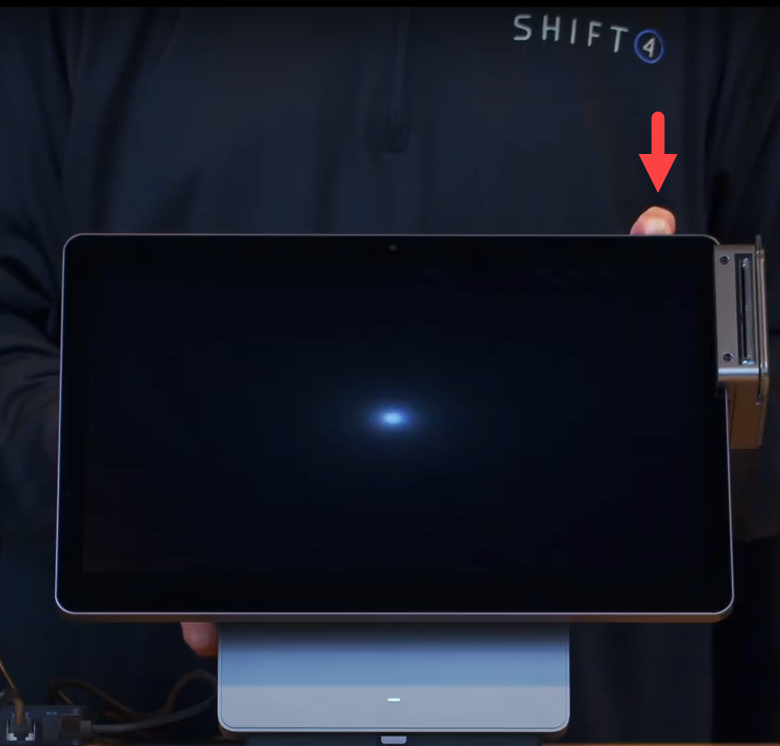

3. Press the power button located on the top right corner of the screen.
