Resend KDS Configuration From SkyTab POS

Description: Learn how to resend your Kitchen Display System (KDS) Configuration from the SkyTab POS.

---

Availability: United States, Canada, Ireland, Spain, United Kingdom

Requirements:

• You will need the IP address of the Kitchen Display System (KDS) Station that needs the configuration resent. (Located in the bottom right of your KDS screen.)
• You will need manager permissions in the POS to complete this procedure.

To resend the KDS configuration:

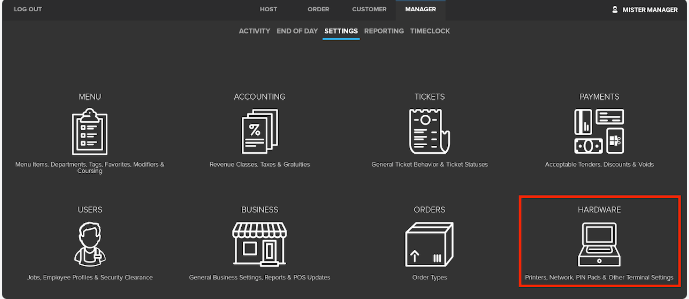

1. Navigate to Manager > Settings > Hardware > Printers.

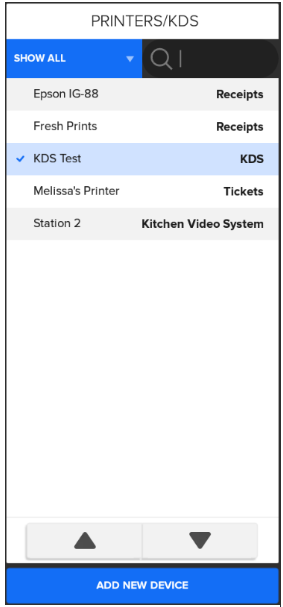

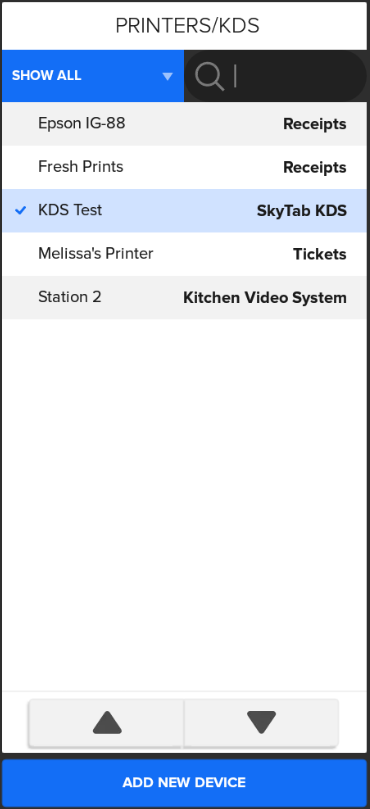

2. Select the KDS station from the Printers/KDS list.

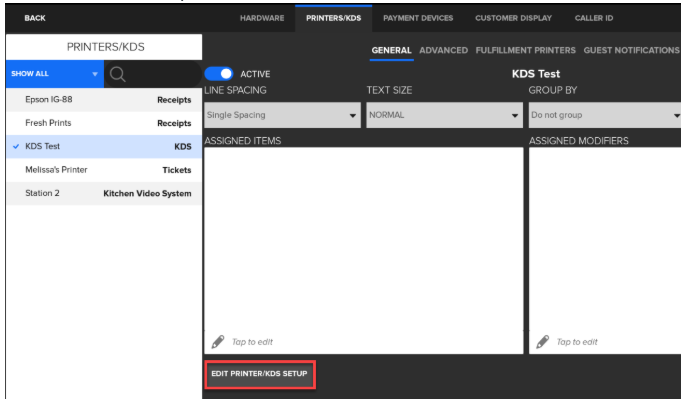

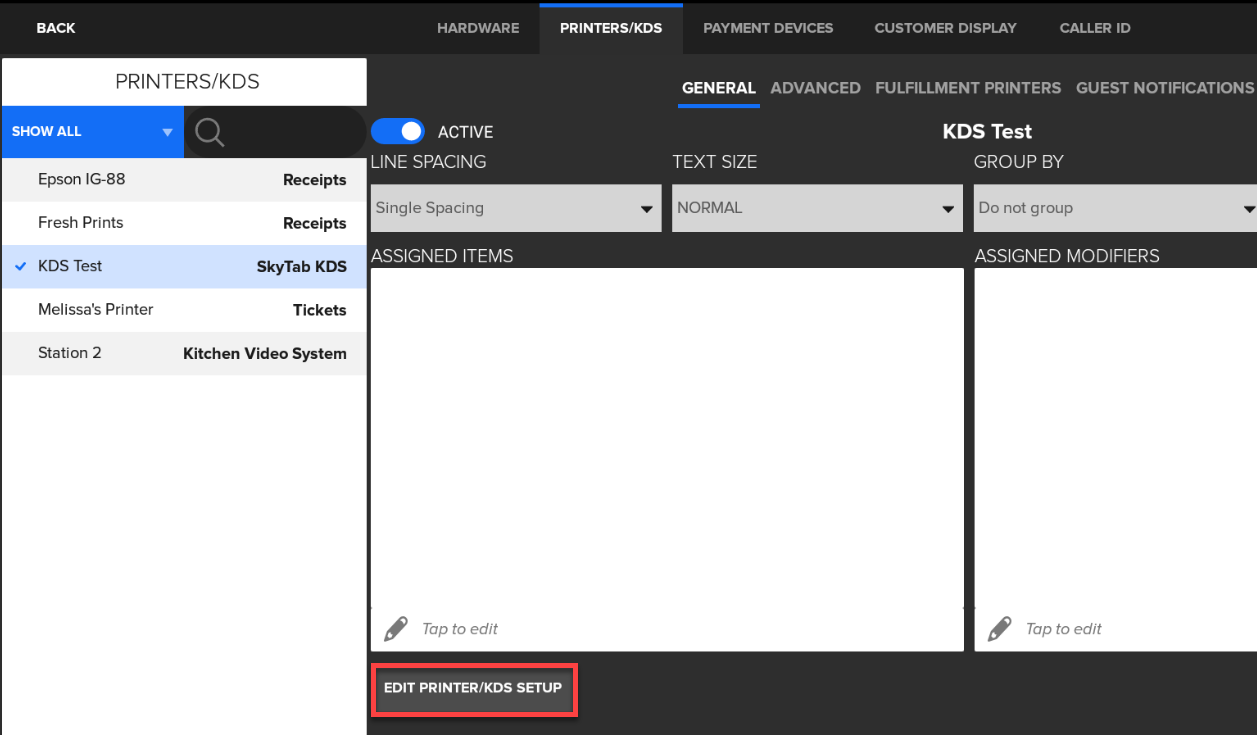

3. Select Edit Printer/KDS Setup.

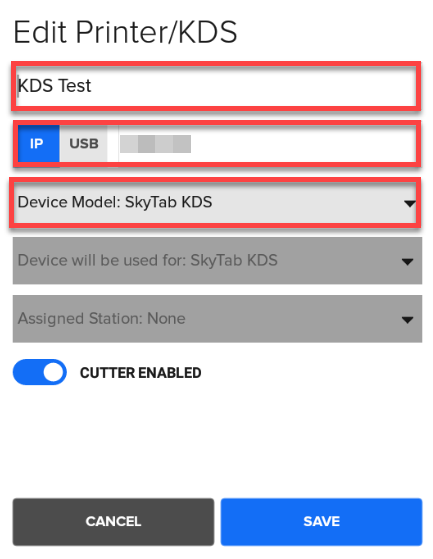

4. Verify the following fields are correct:
   • Printer name
   • IP address
   • Printer model
5. Select Save when the information is correct.

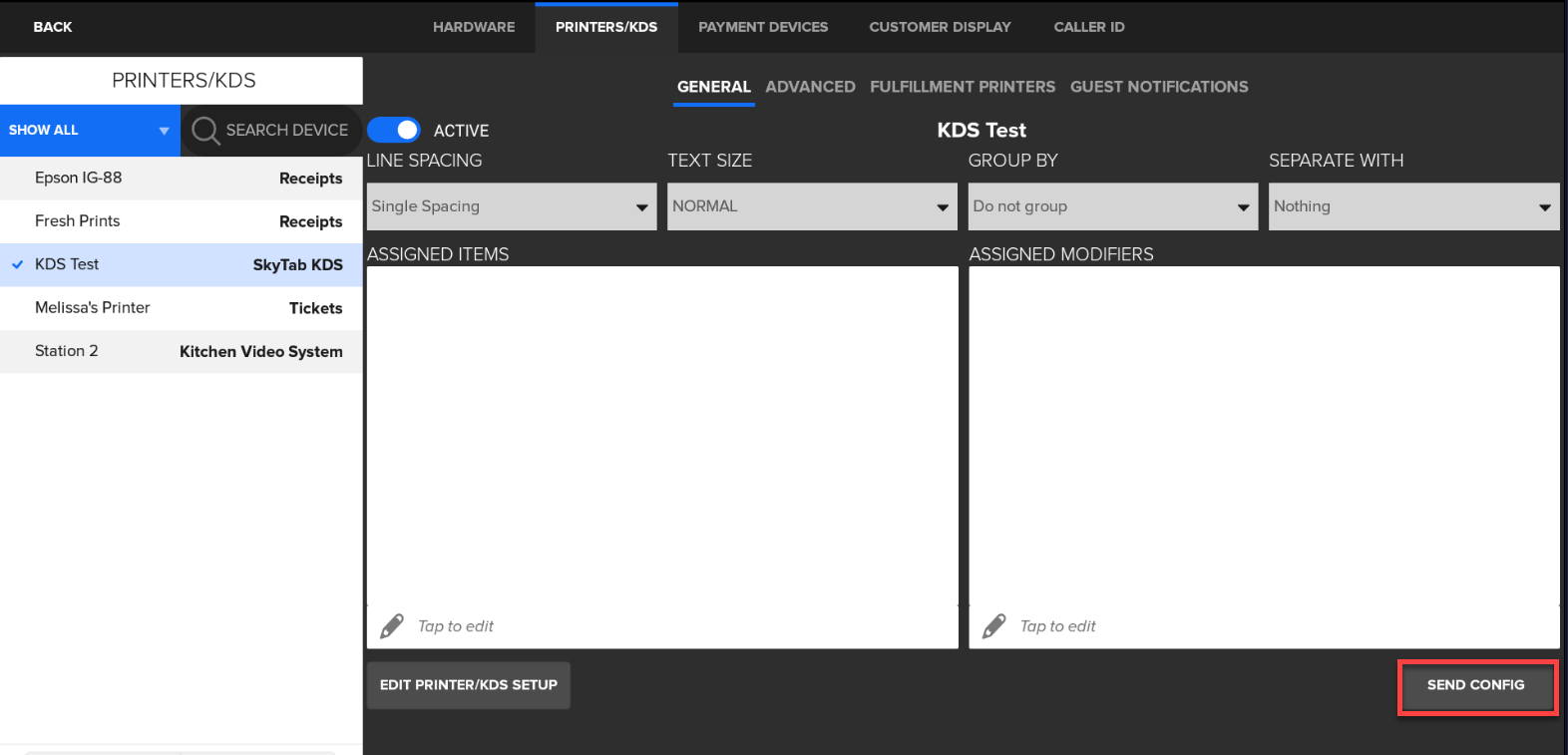

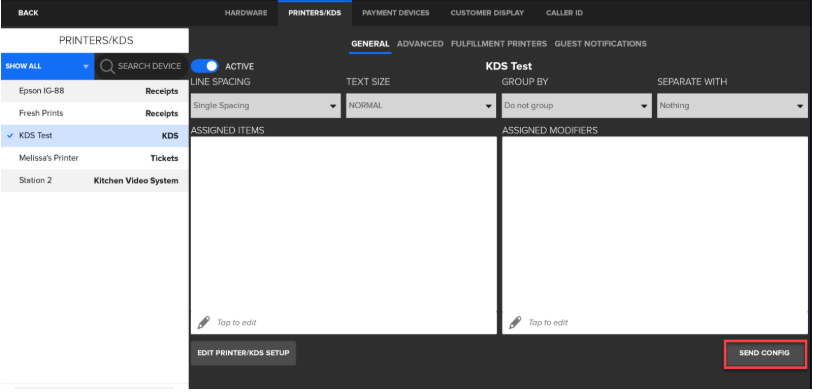

6. Select the Send Config button from the Printers screen.


KDS is not Receiving Tickets After Resending the Configuration

If the KDS configuration already exists and a new configuration is sent to the KDS, visit the Refresh Data article for the issue to be resolved.
