Customer-Facing Display Specifications

Elys Tablet 7

General Information

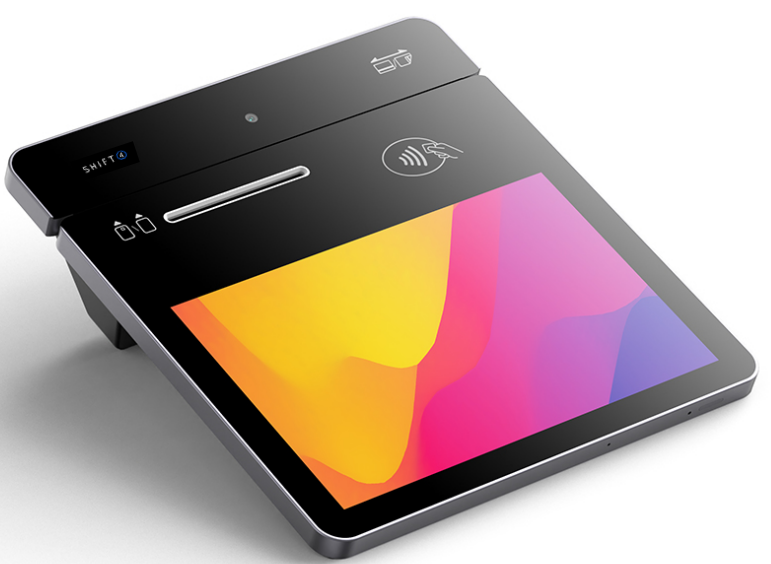

The Customer-Facing Display plugs directly into the back of the SkyTab POS. Customers can see the order as it is being entered to ensure accuracy. The user-friendly dual-head magnetic stripe and dual-contact chip readers can accept card payments from both sides.

Dimensions	7" 1280 x 800 pixels IPS HD touchscreen 7.36 H x 6.94 W x 1.88 D inches
Weight	1.73 lbs.
Operating System	Android 11
Processor	Octa-Core 1.8GHz
Memory	2GB RAM|16GB Flash
Comms Configurations	Wi-Fi 2.4GHz/5GHz + Bluetooth 5.0
Environmental Conditions	-10~45 C (14°F - 113°F) Operating Temperature -20°C - 70°C (-4°F ~ 158°F) Storage Temperature 10% ~ 93% Relative Humidity, Non-Condensing
Payments	Chip & PIN Magnetic Stripe Contactless Supports Apple Pay & Google Pay

Capabilities

• Update images for custom Idle/Splash Screen
• Real-time order entry display to the customer
  • Item Price (with modifiers)
  • Subtotal
  • Tax
  • Surcharges
  • Discount
  • Total + Credit Total (Advantage Program)
• Process payments with Shift4 Gateway
• Customers can pay via Customer Display or can skip and pay using POS hardware.
• Configure up to 3 tip options
• Customers can enter a custom tip
• Loyalty sign-in/sign up
• View Loyalty Balance

Does SkyTab Customer Facing Display Support Signature Capture?

No, SkyTab Customer Facing Display (PAX A3700) does not support the signature capture feature at the moment.
