Replace Paper in the Printer for SkyTab POS

Description: Learn how to replace paper in the printer for SkyTab POS.

• Thermal RP-D10/Epson M30
• Epson Dot Matrix
• SNBC BTP-R180II

---

Thermal RP-D10/Epson M30

Loading the Paper

1. Place the thermal paper roll into the top of the receipt printer, feeding from underneath the roll.
2. Pull 2-3 inches of paper past the paper cutter and close the lid.


3. Press Feed to advance the paper.
4. Scratch the paper with your fingernail to ensure the printable side of the thermal paper is facing forward. The printable side of the paper will darken when scratched by your fingernail.

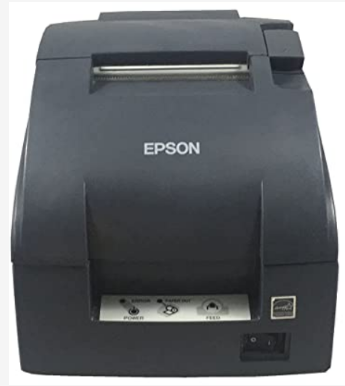

Epson Dot Matrix

Loading the Paper

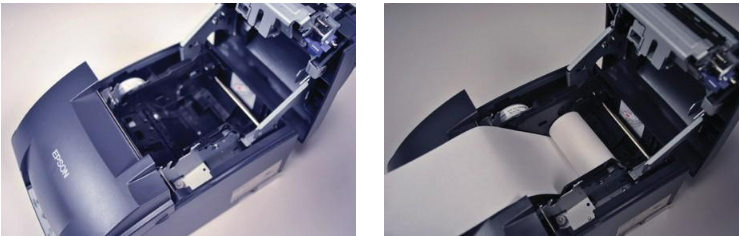

1. Place the paper roll into the top of the receipt printer, feeding from underneath the roll.
2. Pull 2-3 inches of paper past the paper cutter and close the lid.

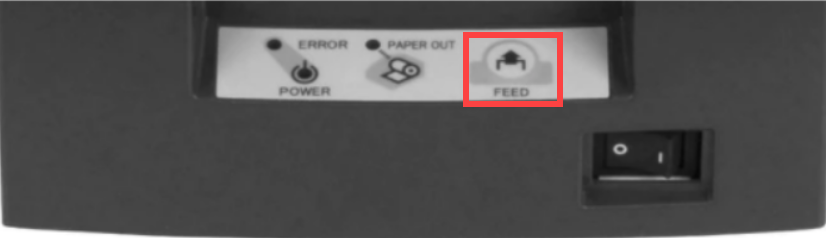

3. Press Feed to advance the paper.


SNBC BTP-R180II

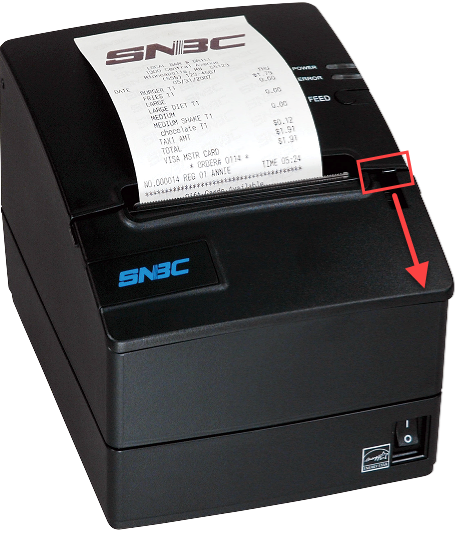

1. Remove the lid by pulling the button to the front of the printer as shown in the picture below.

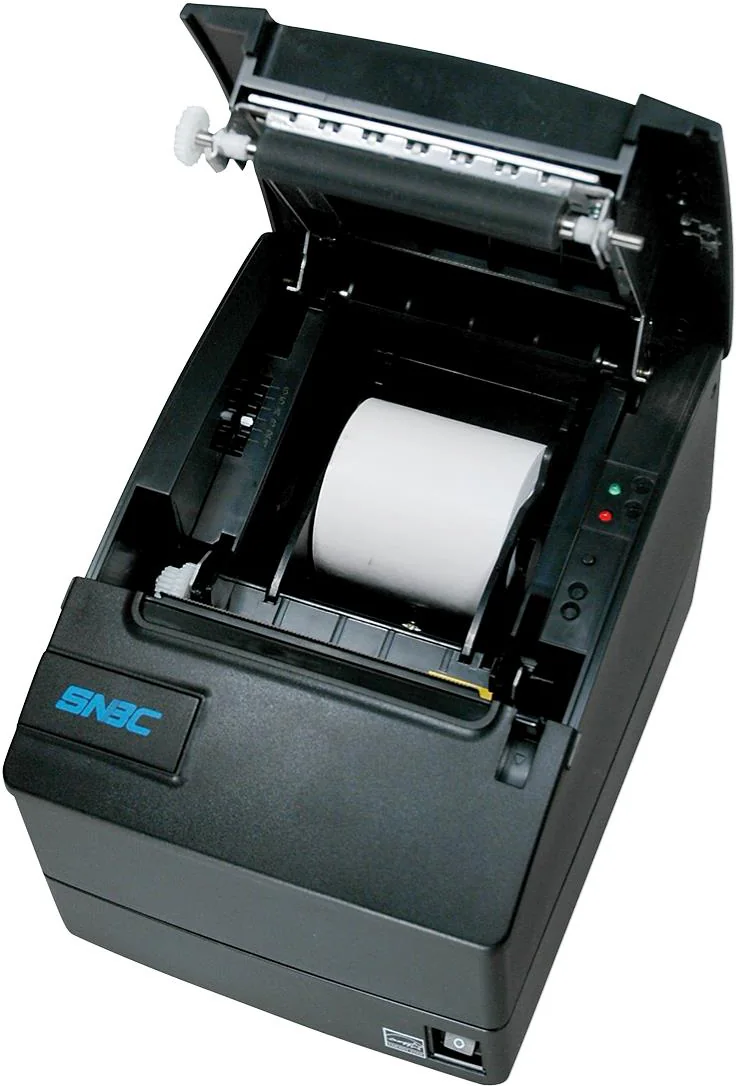

2. Place the thermal paper roll into the top of the receipt printer, feeding from underneath the roll.
3. Pull 2-3 inches of paper past the paper cutter and close the lid.
