iSMP4 - Pair with an iOS Device for Appetize

Description: Review the steps to pair your Ingenico iSMP4 to your iOS device below.

---

Power

• The device should be fully charged prior to use if it will be used in a mobile environment.
  • Only the included USB-C cable can be used to charge the device as no other cable is compatible.
• The device can be powered on by holding the power button on the upper right side for several seconds until you hear a series of beeps and text begins to appear.
• The device is powered off by holding the power button for several seconds.
• The device can be rebooted by holding the Yellow and .,#*  buttons for several seconds.

Note: If the device is plugged into power, it will turn on automatically.

Pairing the Device (iOS Device Steps)

1. Ensure the iOS device is powered on and charged or charging.
2. Open the iOS Settings app.
3. Select Bluetooth.

Pairing the Device (iSMP4 Steps)

1. Power the device on.
2. You will see either “BT Pairing Required” or “Lane Closed.”

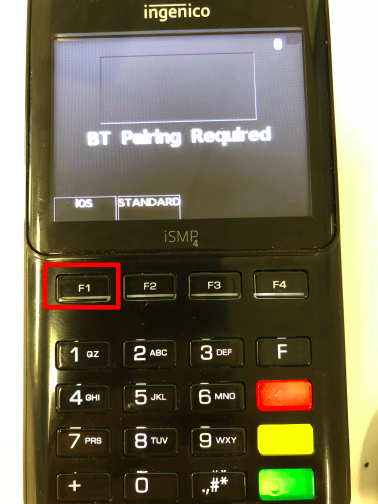

3. If you see “BT Pairing Required,” press the F1 Key under iOS and go to Step 6.

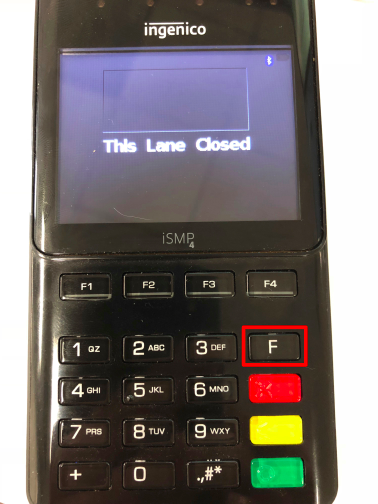

4. If you see “Lane Closed,” tap the F key five times in quick succession.




5. You should now see “BT Pairing Required,” press the F1 Key under iOS.

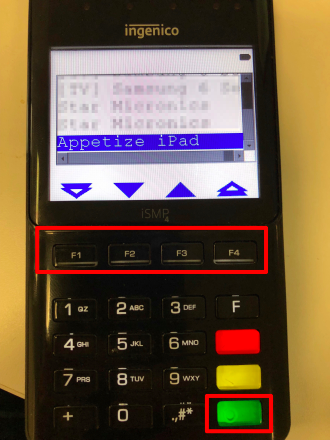

6. Use the F1 through F4 keys as arrow keys until you locate the iOS device by its name.
   • The iOS device name can be found at the device in the Settings app > General > About or in the Bluetooth Menu as “Now discoverable as _____.”
7. When you locate the device, highlight it and press the green key.

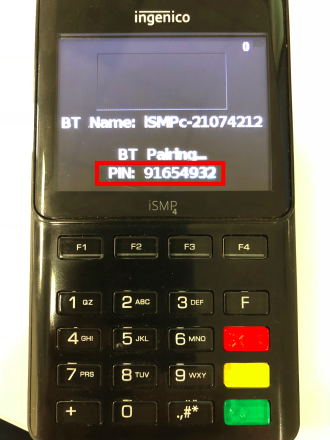

8. The iSMP4 will now display a PIN.

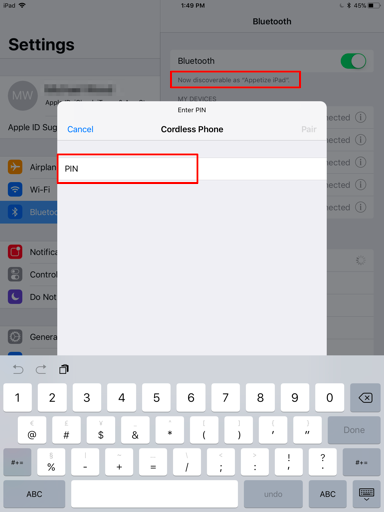

9. On the iPad, you will be prompted to enter this PIN.
   • The device may appear on the iPad as a “Cordless Phone” initially.




10. The device should now read as paired on both devices.

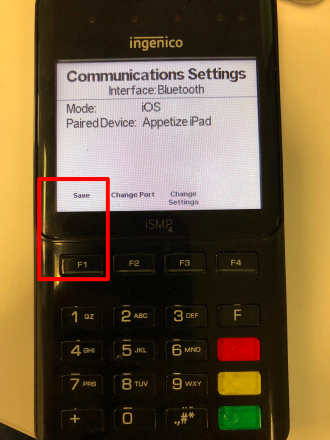

11. Tap F1 on the iSMP4 to Save.
12. The device will reboot and it is now paired.

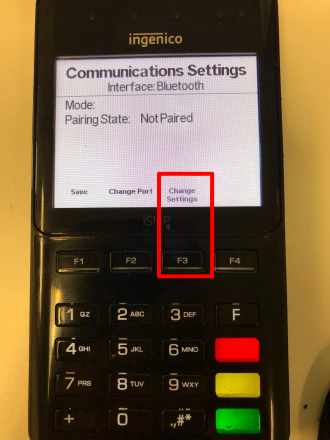

13. If you see a screen that says “Not Paired,” tap F3 for Change Settings and attempt the pairing procedure again.
