Connect the TP-Link Omada Wireless Access Point for SkyTab POS

Description: Learn how to connect the TP-Link Omada Wireless Access Point.

---

TP-Link Omada Wireless Access Point Overview

This device allows for more flexible installations of your Wireless Fidelity (Wi-Fi) devices and features improved Wi-Fi 6 technology.

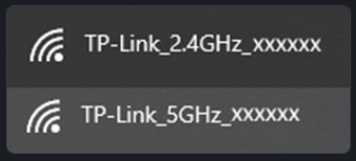

Important: If your Access Point (AP), when connected, displays “TP-Link 2.4GHz” and “TP-Link 5GHz” as the wireless Service Set Identifier (SSIDs), your device has not been pre-configured, and you should contact SkyTab support for assistance.

The sticker with the Wi-Fi password should be on the back of the device.

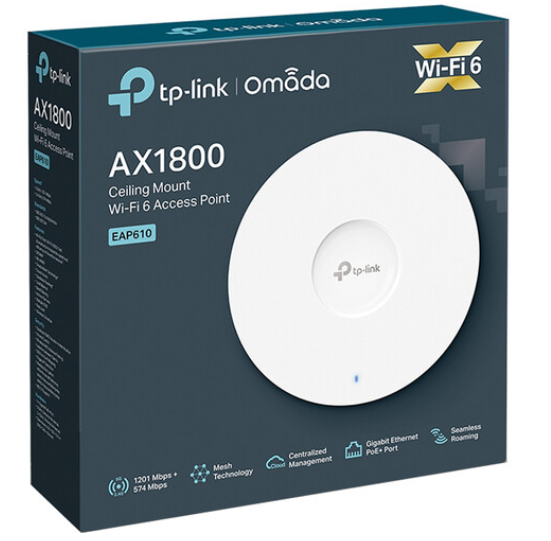

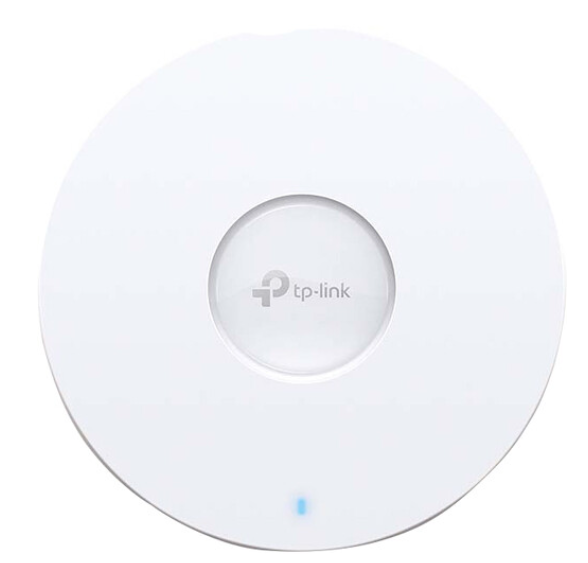

Device Image

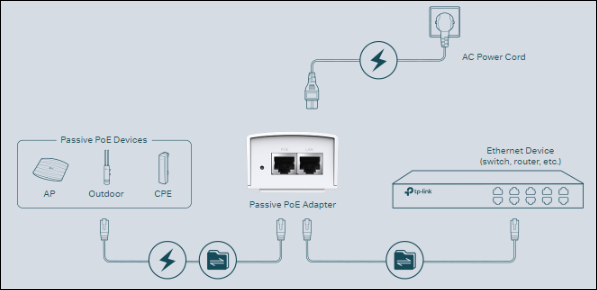

Connect the Wireless Access Point

The installation of this device is simple.

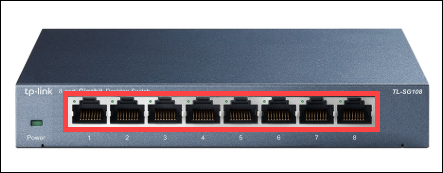

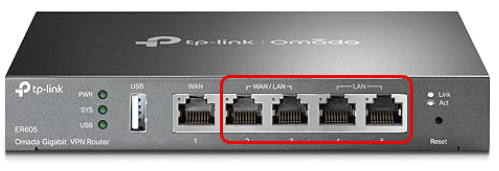

1. Locate one of the open (Local Area Network) LAN or LAN/Wide Area Network (WAN) ports on your TP-Link router and connect the Cat5/6 Ethernet cable.
   Note: This step can be performed on either the TP-Link switch or router, if the switch is present.
   Important: Do not plug this cable into the router's WAN port.

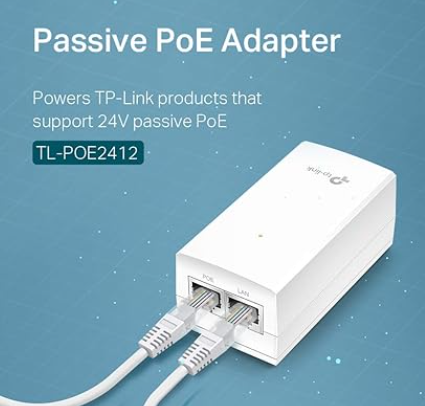

2. Connect the other end of the Cat5/6 Ethernet cable to the LAN port on the second port of the Power over Ethernet (PoE) adapter.
   Note: A PoE adapter sends power directly through the Cat5/6 Ethernet cable to the device from a remote location.


3. Connect a second Cat5/6 Ethernet cable to the first port on the Ethernet adapter.

4. Connect the other end of the second Cat5/6 Ethernet cable to the port on the TP-Link Omada Access Point.

5. Connect the power cable to the PoE adapter located on the back side, and plug the other end into the power outlet.

Mount the Wireless Access Point

Using the included mounting plate, mount your Access Point to a wall or ceiling for a better connection.

Locate EAP610/EAP613 Access Point Password

To locate the EAP610/EAP613 access point login credentials, proceed with the following steps:

1. Navigate to Archos, enter MID in the customer tab, and select Search.

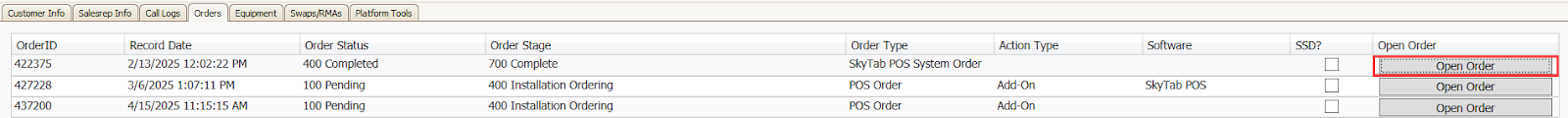

2. Select the Orders tab, and select the order containing an access point device by selecting Open Order.

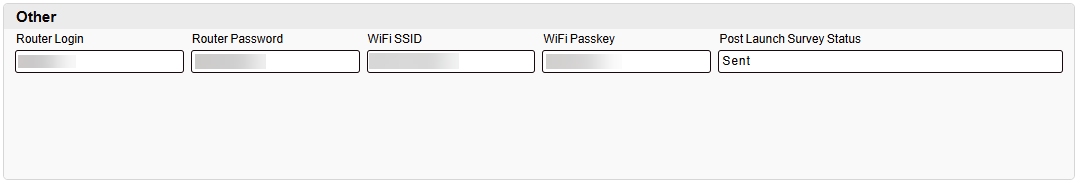

• For New Archos Wizard Workflow: navigate to the Order Data > Other > Wifi Passkey.

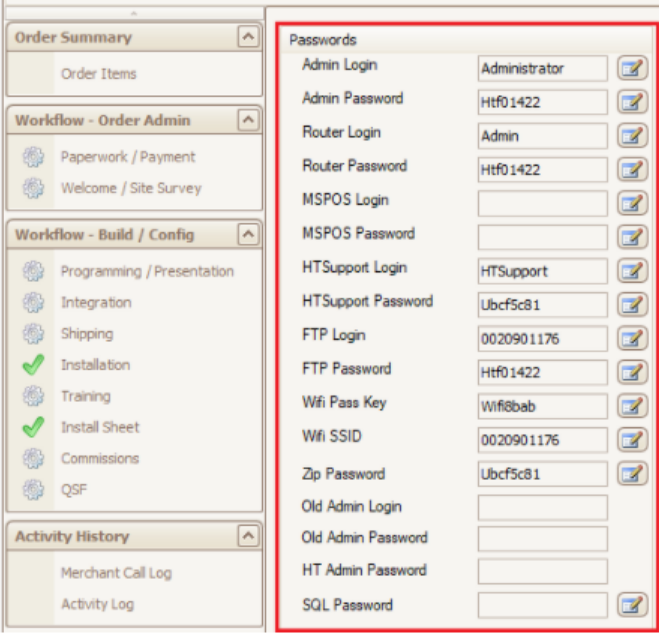

3. On the Order Info screen, locate the Workflow - Build / Config menu on the left and select the Integration option.


4. In the Password window, the Access Point password is located in the Wifi Pass Key section.

EAP610/EAP613 Access Point Default Login Credentials

In cases when the Access Point has been reset or not pre-configured, the credentials are:

Username: admin

Password: admin

If login default credentials aren’t working, try case-sensitive credentials:
Username: Admin

Password: Admin
