Install and Connect the Epson TM-L100 Label Printer for SkyTab POS

Description: Learn how to set up and connect your Epson TM-L100 label printer, including inserting paper and powering on the device.

---

Note: After installing your label printer, configure it on the POS system to ensure it is set up correctly for printing.

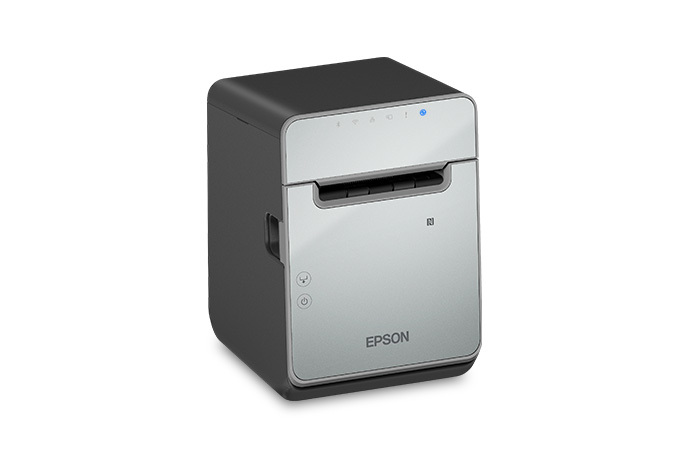

Label Printer

Connect the Label Printer

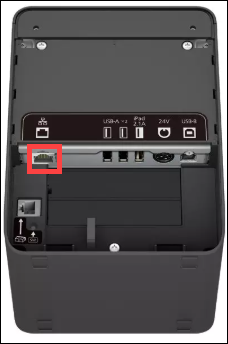

1. Plug a Cat5/6 Ethernet cable coming from the TP-Link router or switch into the printer's Ethernet port.

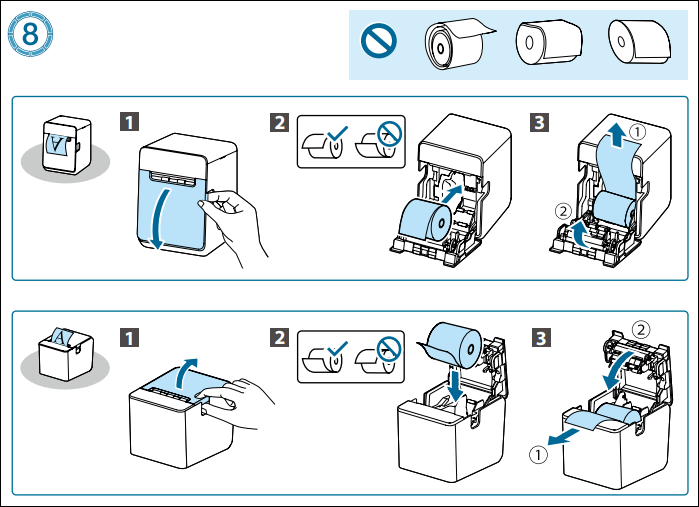

2. Insert the paper roll inside the printer.
   Note: While Shift4 doesn't directly provide the label printer paper, we suggest placing orders through a trusted third-party website.

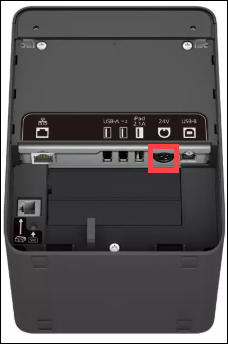

3. Plug the power cable into the back of the printer and the other end into a power outlet.

4. Turn on the printer by pressing the power button.


Ordering Label Printer Paper

If you need paper supplies for your label printer, refer to this page.

• No liner backing makes these an eco-friendly option
• Can be cut to any size
• Repositionable adhesive
