A35 Pin Pad Installation Guide for Kiosk

Description: Learn about the different steps for installing the stand when using either a Wi-Fi or Ethernet communication method for Kiosk.

---

Availability: United States, Ireland, Spain, United Kingdom

Installing Stand With a Wi-Fi Connection

Required Tools and Components

• A35 PIN Pad
• L1400 POS System
• T3400 POS Hub
• Phillips screwdriver
• A35 Stand
• 1 M5 X 8mm long screw
• 1 USB A to C cable

1. If the system is being installed using Wi-Fi, please use the USB A to C cable provided with the PIN Pad and plug it into the back of the A35.

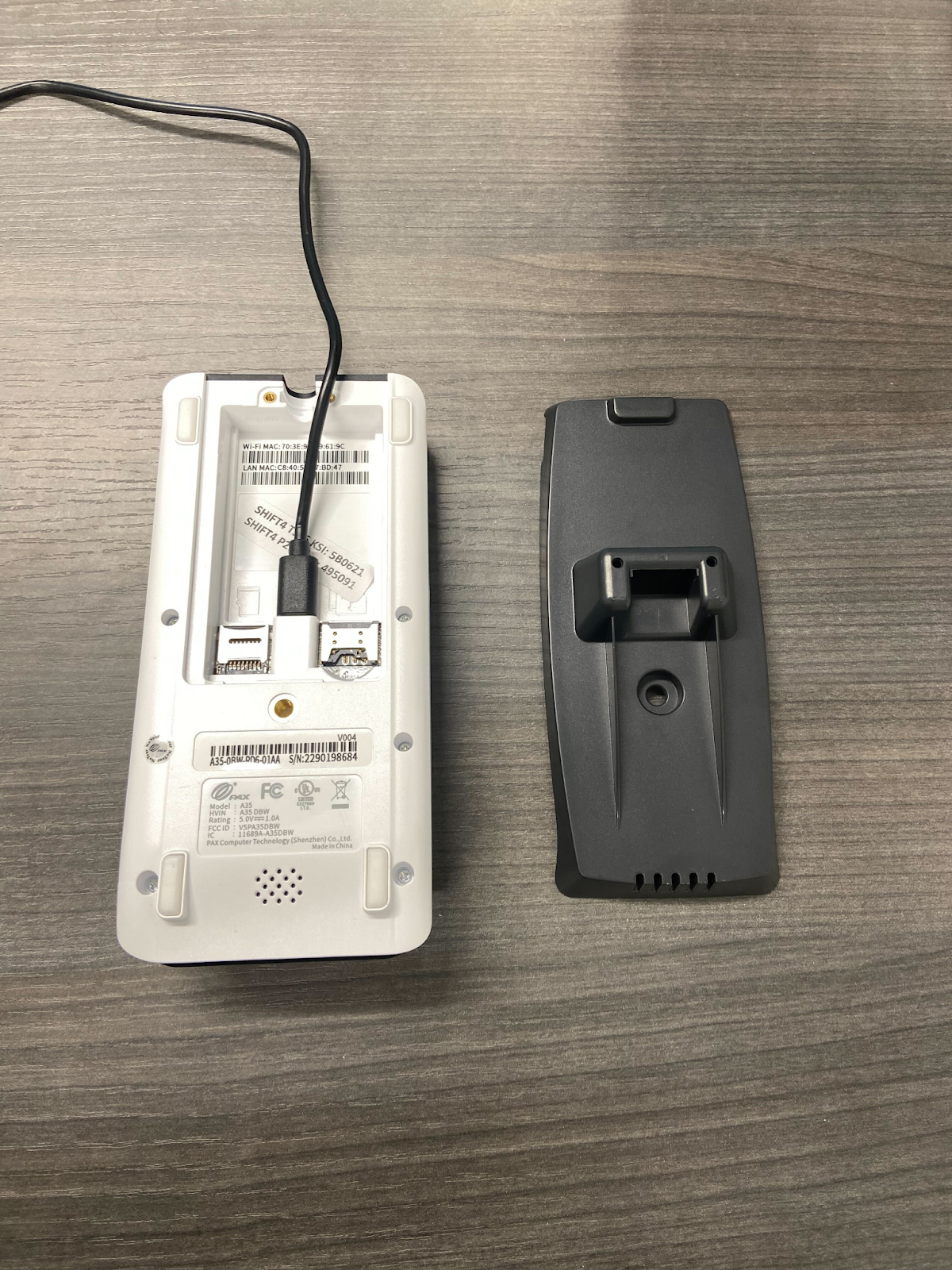

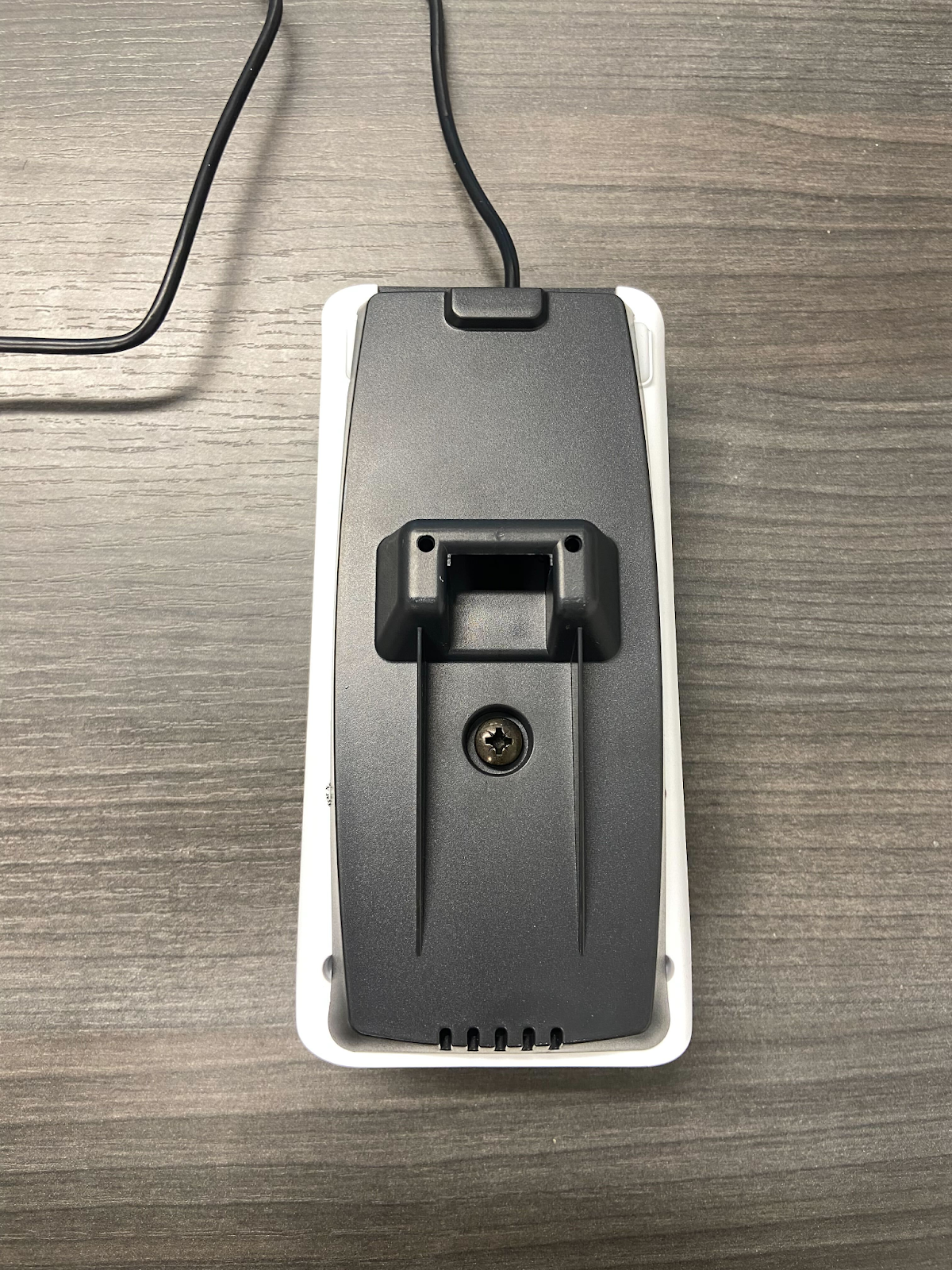

2. Align the backplate on the back of the A35 and screw in the M5 X 8mm long screw to secure the backplate to the device.

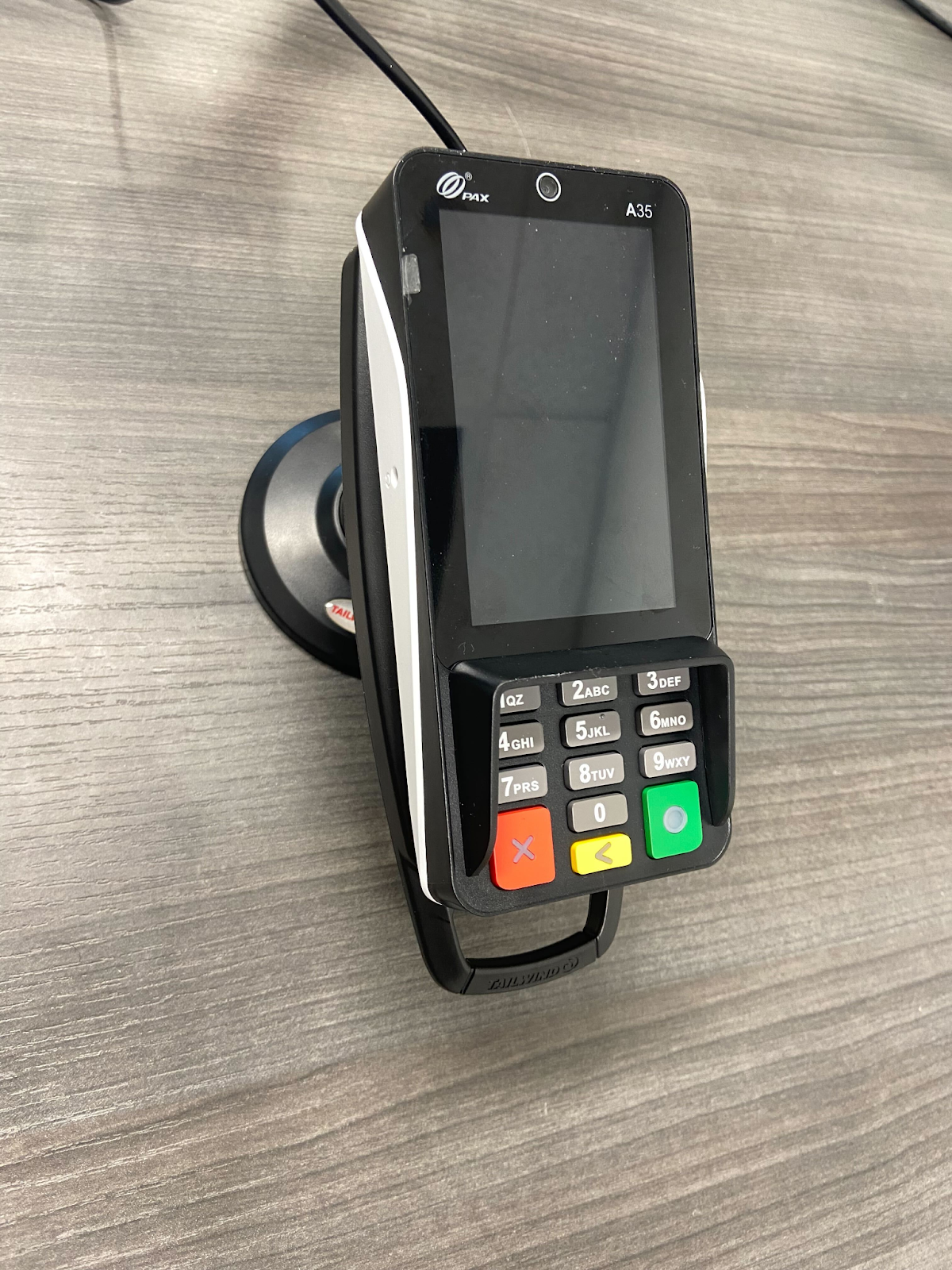

3. Snap the A35 PIN Pad onto the stand and use the sticky back adhesive to secure the device to the countertop.

4. Plug the USB-A cable into the hub connected to the Kiosk station to provide power and configure the device for Wi-Fi connectivity.


Internal:

Connect to Wi-Fi

Set the A35 device to connect to the site’s wireless network.

1. On the Home screen, select the blue Settings button.
2. Enter the password, then select OK. The default is the current date in an MM/DD/YYYY format or pax9876@@.
3. Ensure that Wi-Fi is enabled or toggled on.
4. Select Wi-Fi.
5. Select your local network.
   Important: It must be on the same network as Kiosk L1400.
6. Enter the network’s password, then select Connect.

Configure Static IP

1. Return to Settings.
2. Select Wi-Fi.
3. Select your Wi-Fi network.

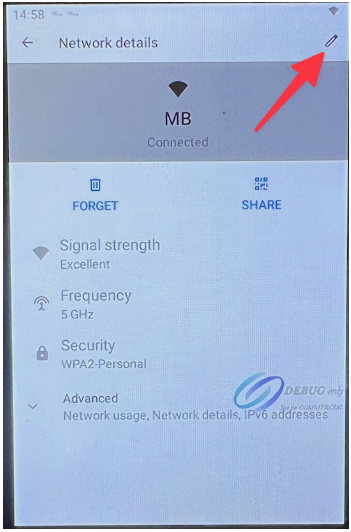

4. Tap the pencil icon to edit at the top right.

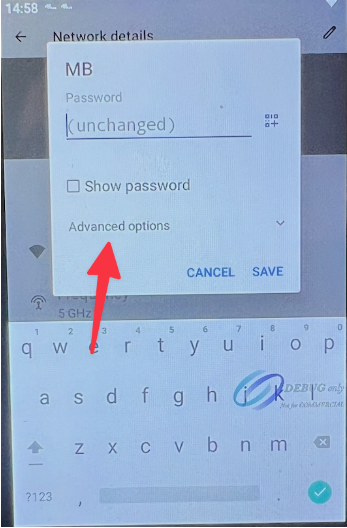

5. In the modal window, tap Advanced options (below Show Password).

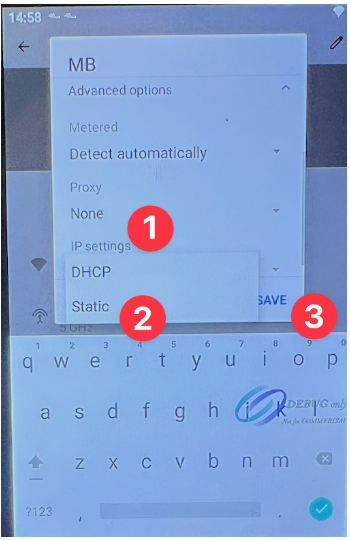

6. Scroll down to IP settings, and select Static.

7. Scroll down to IP Address and enter the same necessary IP information.
8. Select Save.

Installing Stand With an Ethernet Connection

Required Tools and Components

• A35 PIN Pad
• L1400 POS System
• T3400 POS Hub
• Phillips screwdriver
• A35 Stand
• 1 M5 X 8mm long screw
• 1 USB A to C cable
• 1 USB C “squid” cable connection

1. If the system is being installed via Ethernet, please use the “cquid” USB-C cable.

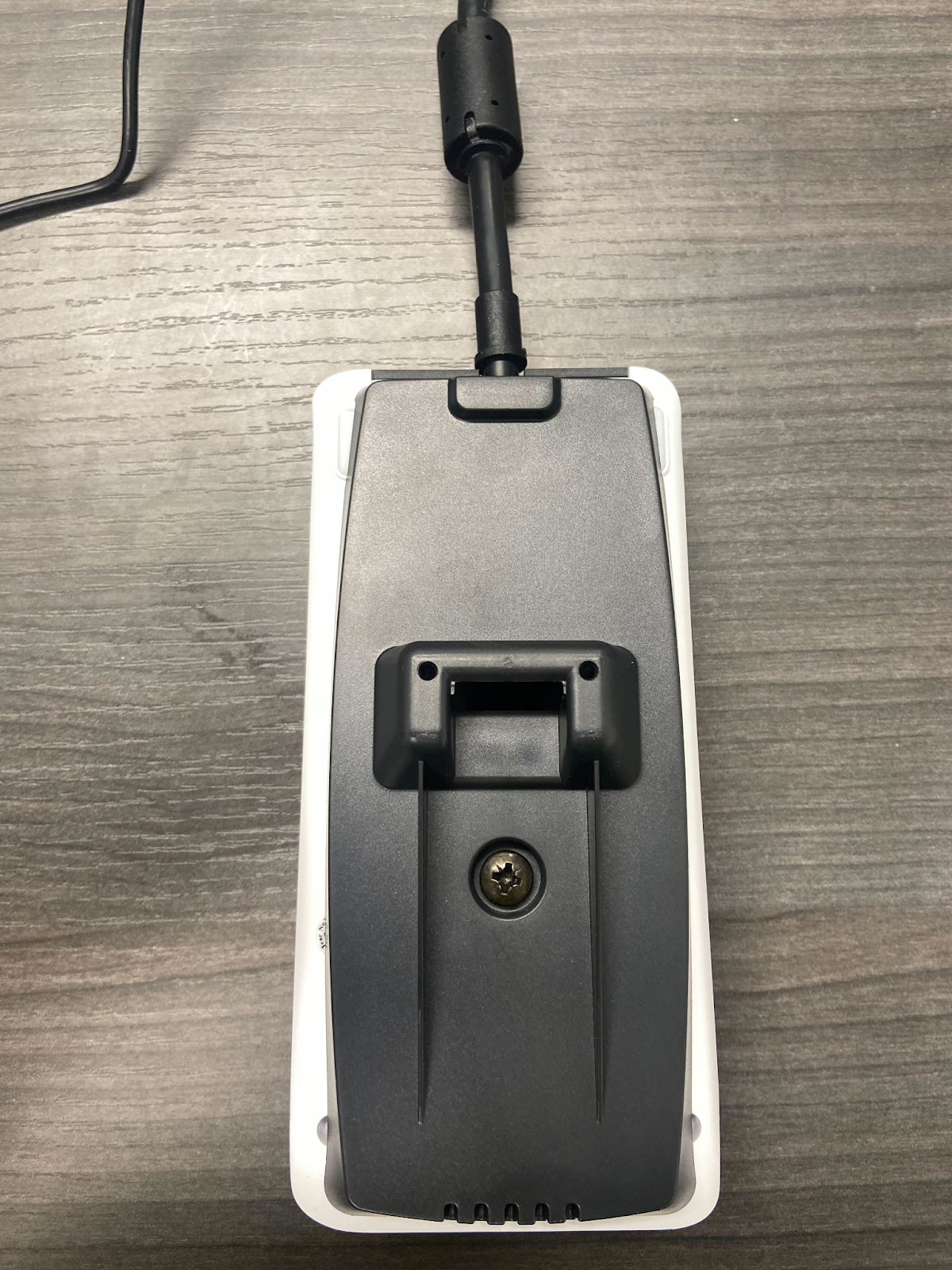

2. Align the backplate on the back of the A35 and screw in the M5 X 8mm long screw to secure the backplate to the device.

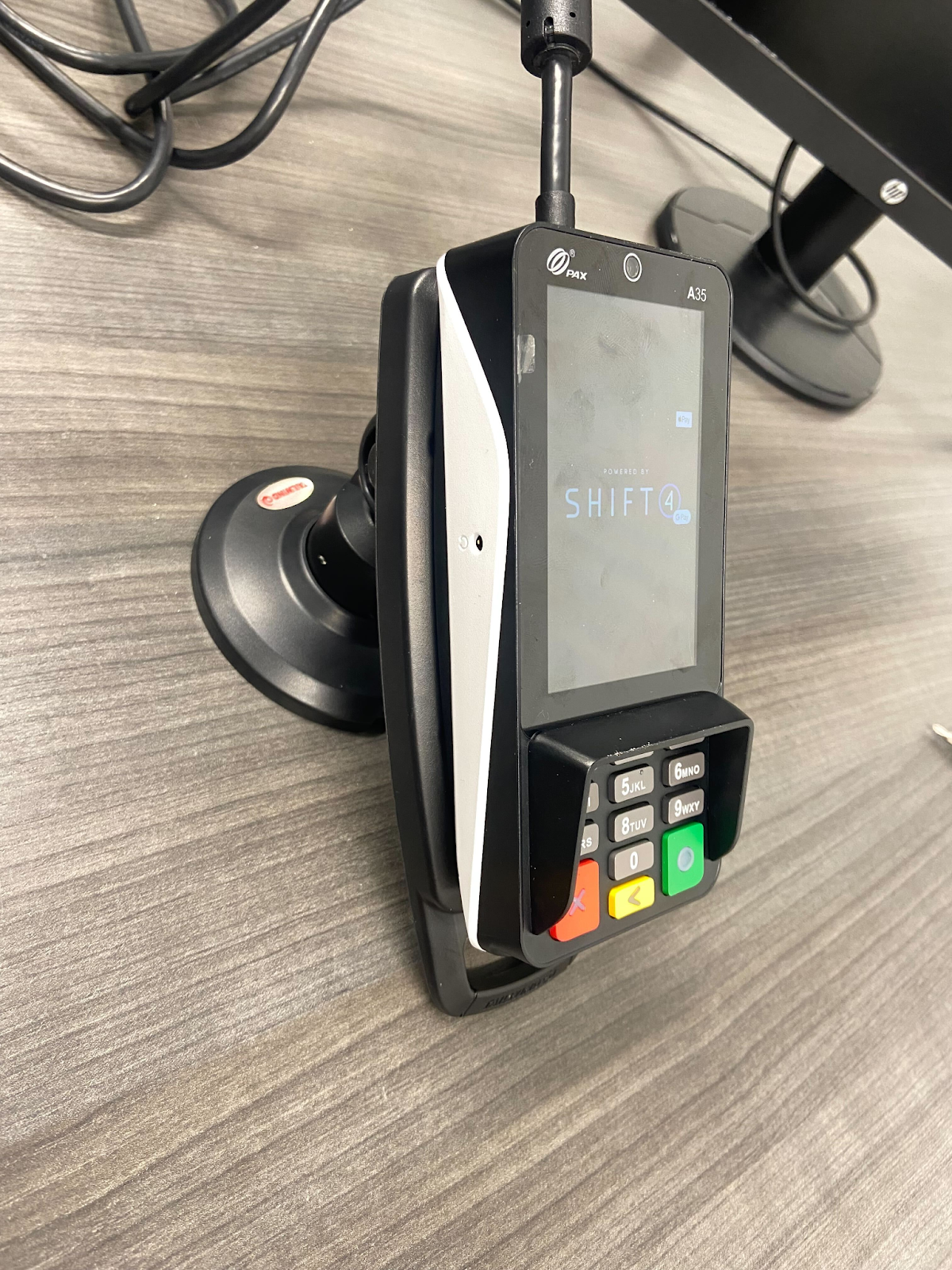

3. Snap the A35 PIN Pad onto the stand and use the sticky back adhesive to secure the device to the countertop.

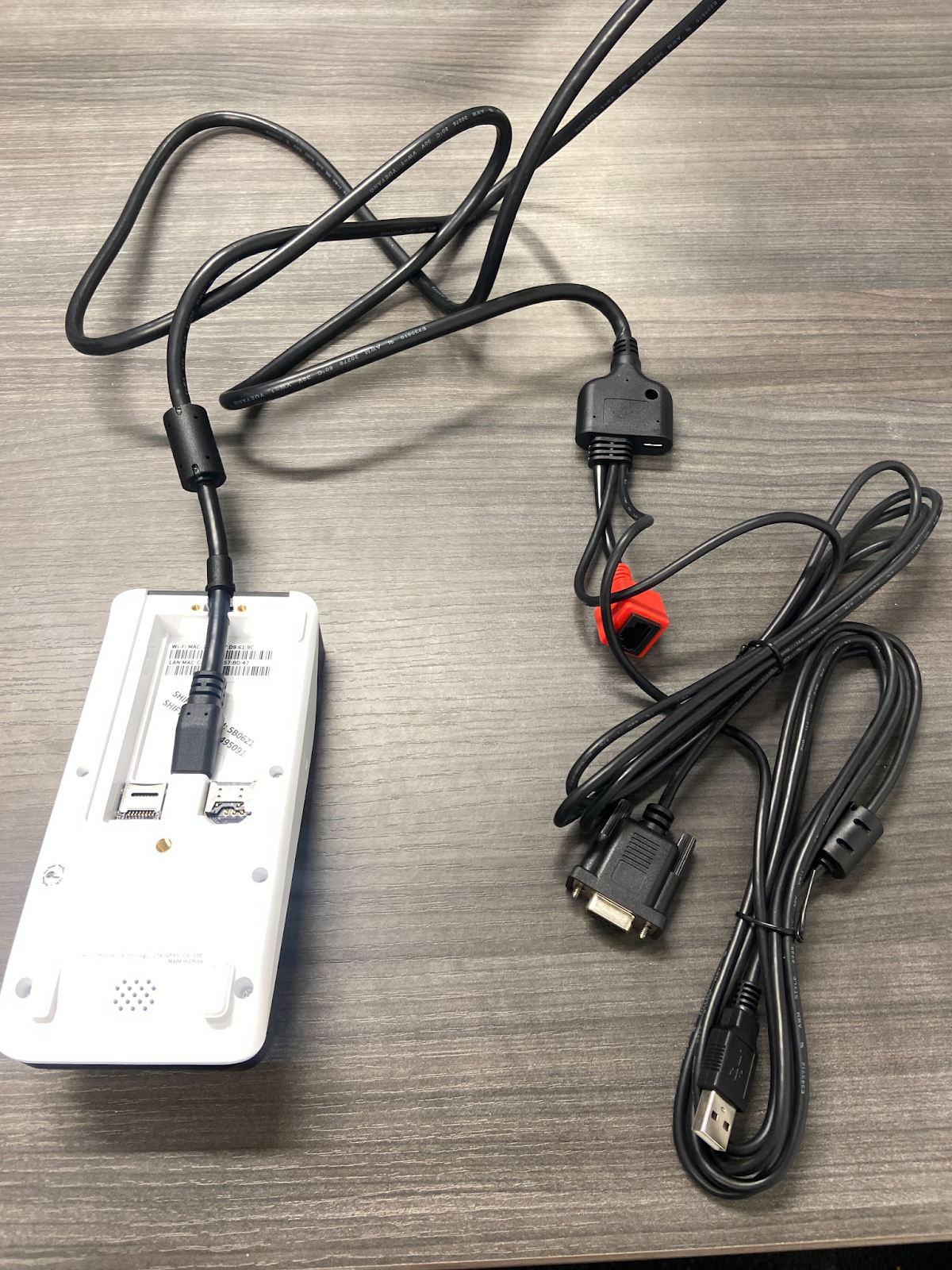

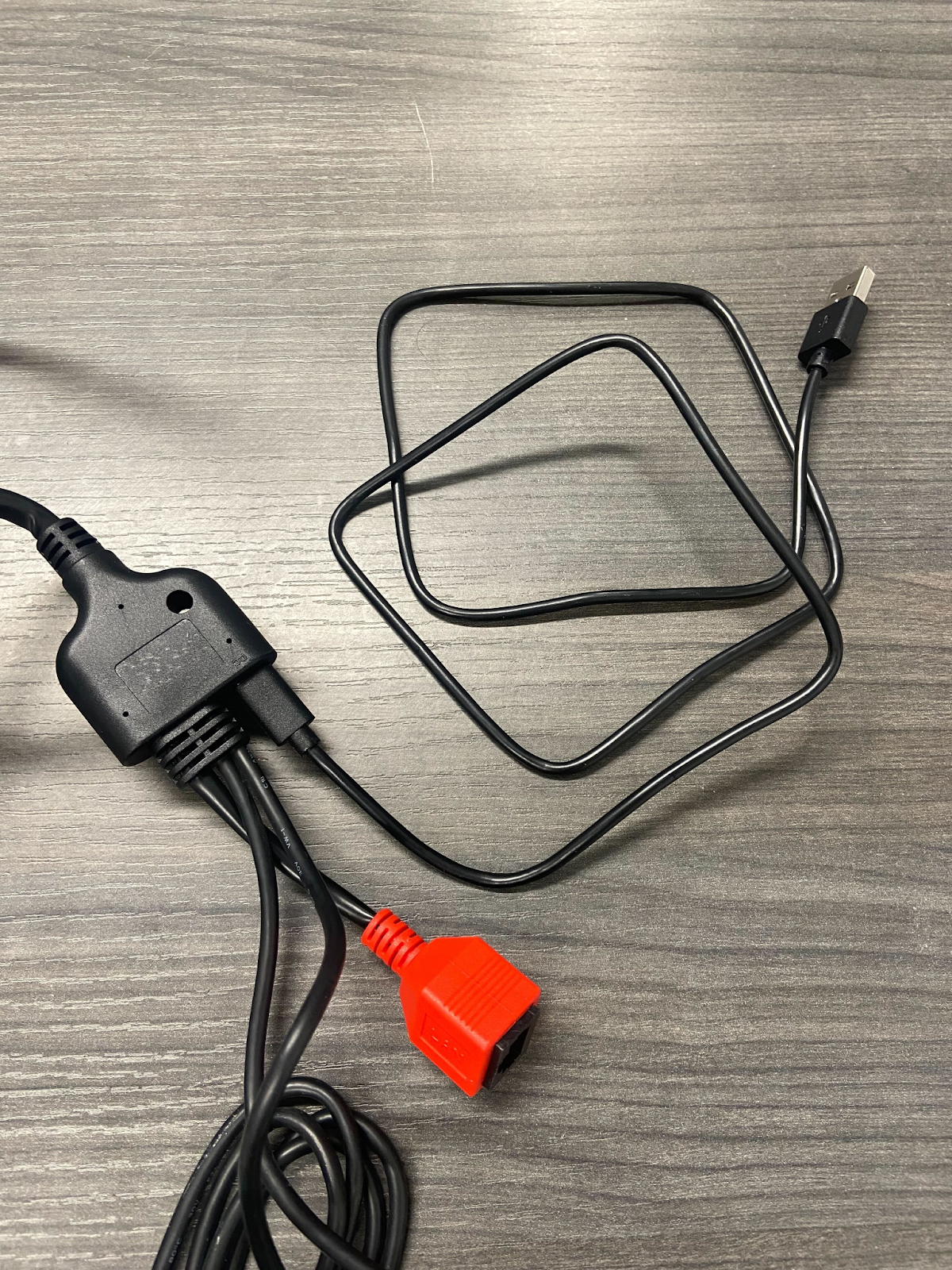

4. Plug the USB A to C cable into the “cquid” cable, as seen below.

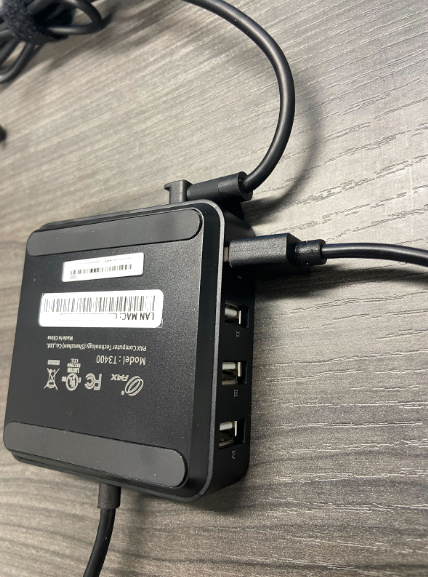

5. Plug the USB cable into the hub to ensure it receives power, or you can use the brick provided to plug into a wall outlet.

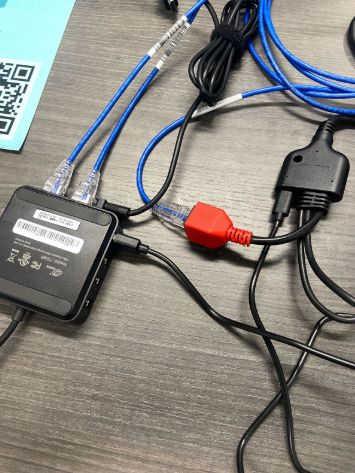

6. Plug one end of the Ethernet cable into the red port of the "squid" cable, and the other end into the 2nd ethernet port on the hub.
