SkyTab POS and Accessory Specifications

Jump to a section by selecting a link below:

• Base Package
• Optional Add-Ons
• Optional Accessory Purchases

Base Package

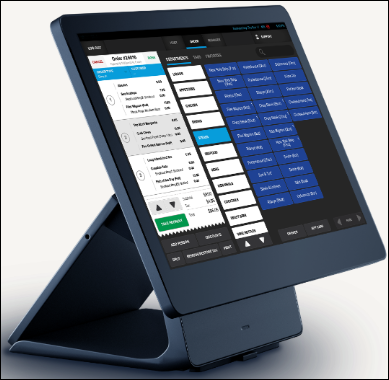

Elys L1400 Android

• SkyTab POS Dimensions: 14” 1920x1080 HD Touchscreen 13.3 H x 10.6 W x 6.5 D inches
• Weight: 5.69 lbs.
• Connectivity: Ethernet (RJ45)
• Processor: 64-Bit Octa-Core Cortex A53 | 2.0GHz
• Display: 14" 1920 x 1080 HD Touchscreen
• Communications: Dual-Band Wi-Fi | Bluetooth 5.0; USB type-C (2) for Power & Hub connect
• Memory: 4GB RAM | 64GB Flash
• SkyTab POS Card Reader
• Operating System: PaxBiz by Android 10
• Payments: Chip, Swipe, NFC Built-in
• (1) TP-Link SafeStream TL-R605 / Omada ER605 Gigabit Router
• (2) 10 Feet Cat-5 Cables per terminal

10 Employee ID Cards

Internal:

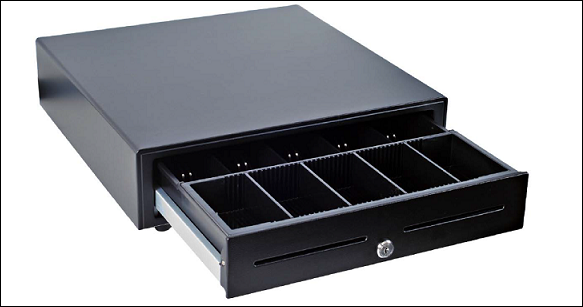

Stainless Steel Cash Drawer

Stainless Steel Cash Drawer



• Dimensions: 3.94 H x 16.14 W x 16.34 D inches
• Weight: 14.1 lb

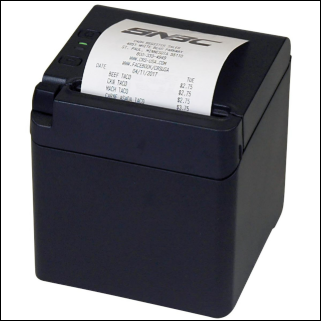

Receipt Printer (SNBC BTP-S80)

• Printer Method: Direct Thermal
• Dimensions: 5.3 H x 5 W x 5 D inches
• Weight: 3.75 lb
• Print Speed: up to 9.84 inches/second

Includes:

• Receipt Printer Paper Roll
• SNBC BTP-S80 USB Cable
• SNBC BTP-S80 Power Cable

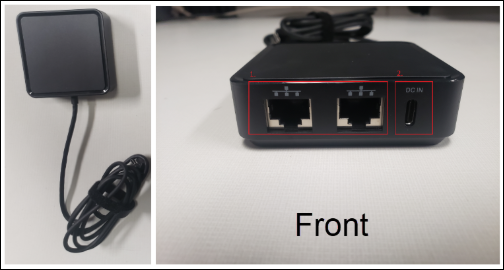

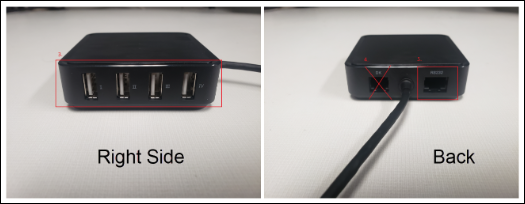

Multipurpose Hub

• The Front Has x2 RJ45 (Ethernet) Ports and a DC In (Power) port.
• The Right side has x4 USB Ports.
• The Back has x1 RJ12 (telephone) Port, x1 RS232 (Serial) Port, and a cable to connect to the POS.

Optional Add-Ons

SkyTab Air (PAX A6630)

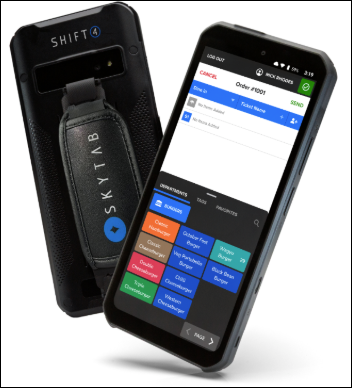

SkyTab Mobile Device (PAX A800)

• Device Type: A800 5.7” Touchscreen Android Mobile
• Dimensions: 7.5 H x 3.2 W x 2.6 D inches
• Weight: 1.0 lb
• Connectivity: WiFi and 4G SIM
• Payments: Chip, Swipe, NFC Built-in

M8 SkyTab Glass (PAX M8)

Customer-Facing Display (PAX A3700)

Thermal Kitchen Printer (SNBC BTP-S80)

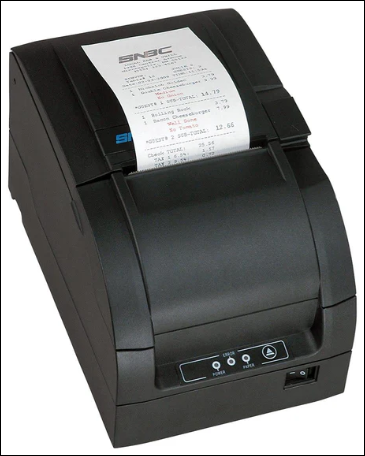

Impact Kitchen Printer (BTP-M300A)

• Printer Method: Impact Printing
• Dimensions: 6.1 H x 6.3 W x 9.65 D inches
• Weight: 7.05 lb
• Print Speed: up to 0.77 inches/second

Internal:

SkyTab 22" & 16" Kitchen Display System (KDS)

SkyTab 22" Kitchen Display System (KDS)

• Dimensions: 12.3 H x 20.3 W x 1.5 D inches
• Weight: 12.45 lb

SkyTab 22" Kitchen Display System (KDS)

• Dimensions: 9.4 H x 15.3 W x 0.75 D inches
• Weight: 5.5 lb

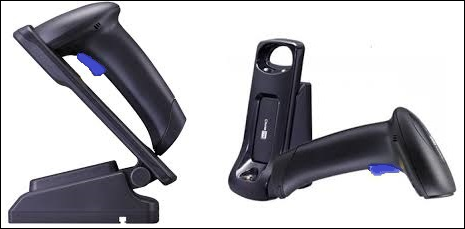

CipherLab 1504p 2D Barcode Scanner

Internal:

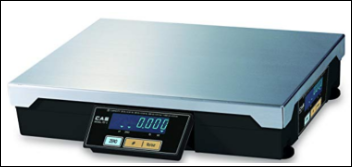

CAS PD-ll Digital Scale

CAS PD-II Digital Scale

• Dimensions: 3.1 H x 15 W x 11 D inches
• Weight: 14.8 lb

Epson TM-L100 Thermal Label Printer

• Printer Method: Direct Thermal Line Printing
• Dimensions: 8.15 H x 5.51 W x 5.87 D inches
• Weight: 4.19 lb
• Print Speed: up to 6.69 inches/second

Internal:

Whozz Calling - Caller ID 2 Line

Whooz Calling - Caller ID 2 Line



• Dimensions: 1.5 H x 3.35 W x 5.3 D inches
• Weight: 2 lb

Internal:

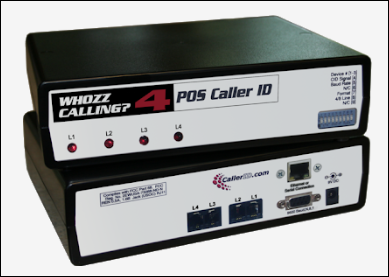

Whozz Calling - Caller ID 4 Line

Whooz Calling - Caller ID 4 Line

• Dimensions: 2 H x 8.1 W x 6.25 D inches
• Weight: 4 lb

Optional Accessory Purchases

• Additional Cash Till
• Additional Cash Drawer
• Split Cable for Cash Drawers

Value-Added Services

• Lighthouse Business Manager (LBM)
• Gift Cards
• SkyTab Workforce
