Charging Station for Handheld Specifications

Availability: United States, Canada

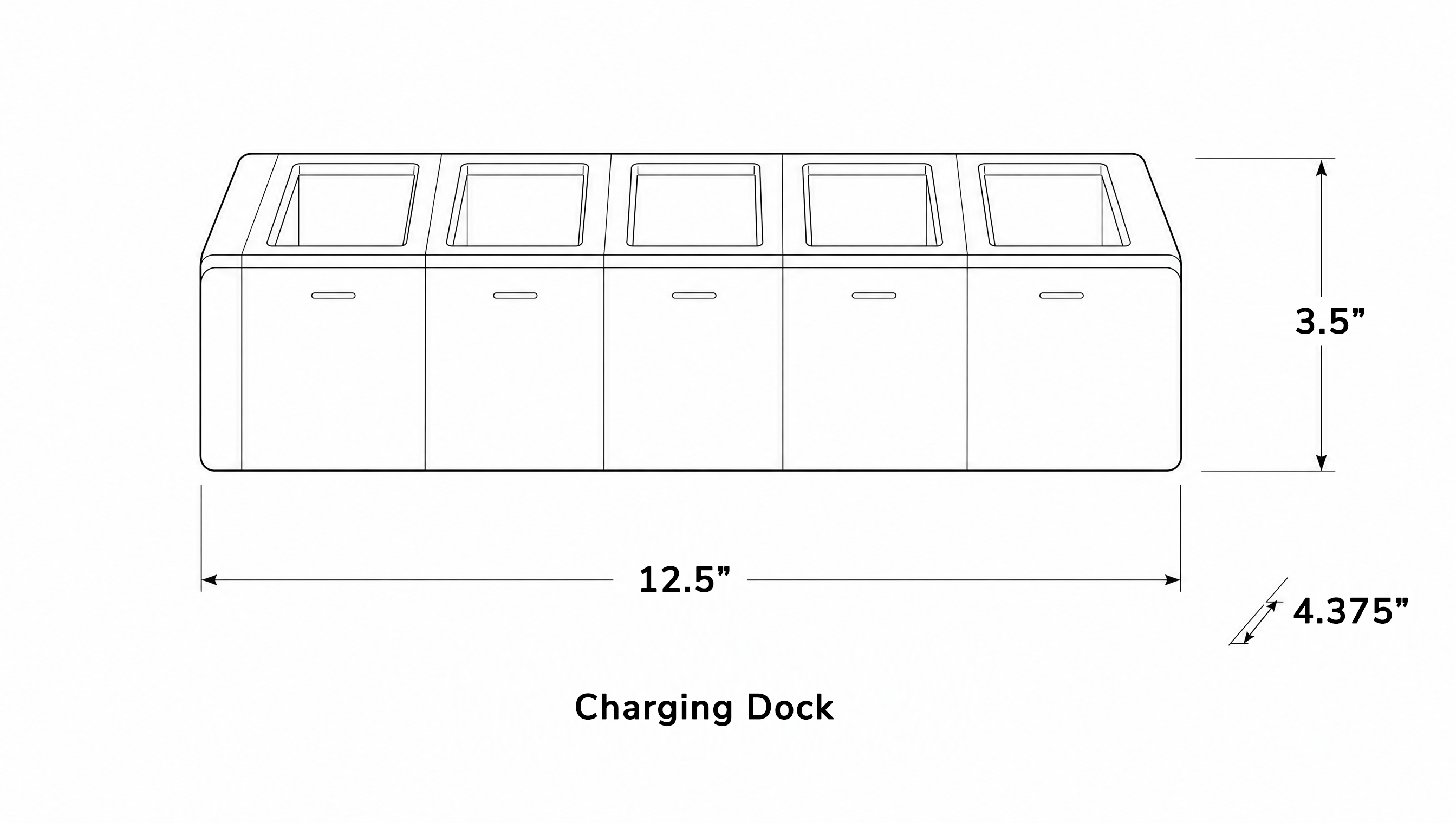

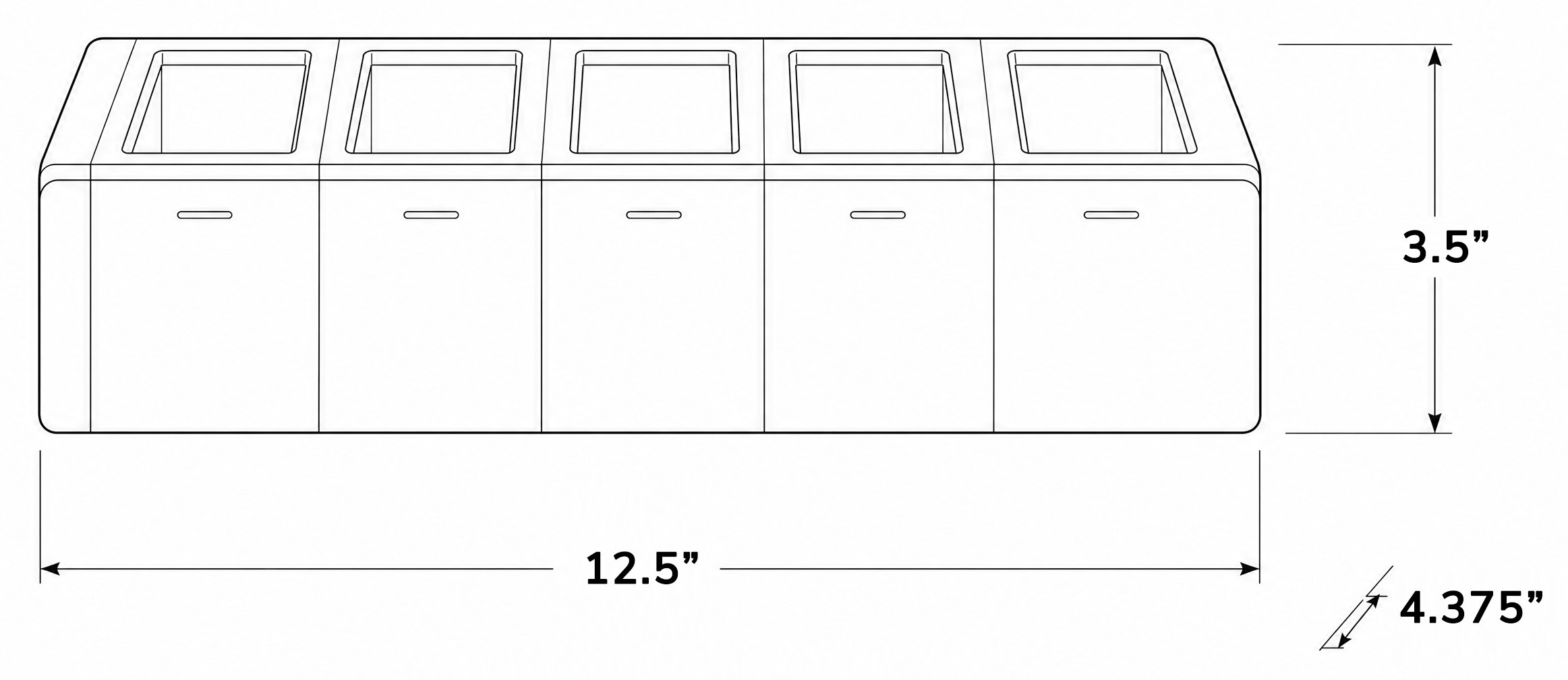

Device Specifications - Charging Station for Handheld

Overview

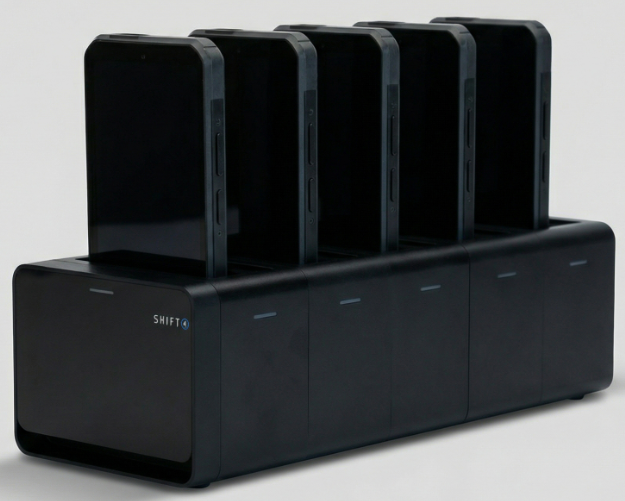

• Purpose-built charging solution for the PAX A6630 handheld terminal
• Maximum capacity: 5 PAX A6630 handheld terminals

Design

• Modular snap-together charging bays
• Tool-free assembly and reconfiguration
• Magnetic pogo pin charging contacts (no device charging cables required)

Package Contents

• 1 Power Dock Controller (head unit)
• 4 Terminal Dock Extensions
• 1 Terminal Dock End (end unit)
• 1 PAX-certified 60W Power Adapter and DC power cable

Compatibility

•  Compatible devices: PAX A6630 Handheld terminal only

Power

• Connect using the included PAX-certified 60W power adapter
• Requires a standard AC wall outlet

Charging

• Power supply: 12VDC, 5A via DC barrel connector (PAX-certified 60W PSU — included)
  Important: Use only the included PAX-certified power supply. Using an incompatible adapter may damage the Charging Station and void the warranty.
• LED charging indicators per device:
  • Red: Device is actively charging
  • Green: Device is idle or fully charged
    Note: If Screen Sleep Time is set to “Never,” the LED may remain red even at 100% battery

Environmental Conditions

• Operating temperature: 0°C to 45°C (32°F – 113°F)
• Storage temperature: -20°C to 70°C (-4°F – 158°F)
• Humidity: 10%–96% RH, non-condensing

Recommended Environments

• Restaurants
• Retail
• Hospitality
• Stadiums and entertainment venues
• Back-of-house charging stations

For more information, visit the Charging Stations for Handheld FAQs article.
