Ingenico Wi Case for Samsung Active 2 with iSMP4 for Appetize

Description: The components needed for the WiCase are shown below.

---

Setting up the Samsung Galaxy Tab Active 2 in the Wi Case

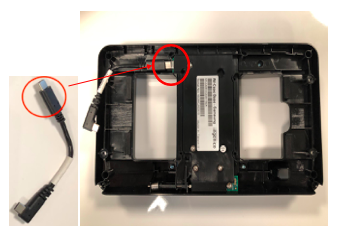

1. Attach the straight end of the adapter to the plug on the Wi Case Base.

2. Place the Samsung tablet with the screen facing up on the WiCase Base (as shown below).
3. Plug the other end of the adapter into the tablet.

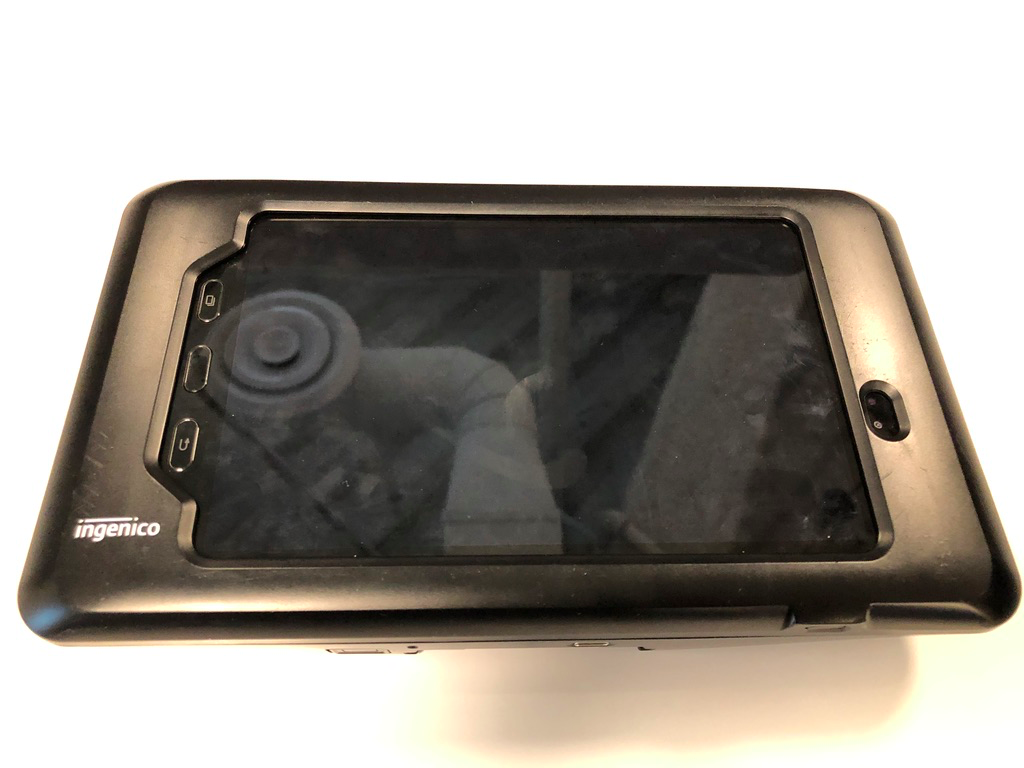

3. Place the WiCase Cover on top of the tablet. The word Ingenico should be on the bottom left corner.

4. Once the tablet has been enclosed, flip over the case to expose the bottom of the WiCase Base.
5. Secure the tablet by inserting screws in the corners, as indicated below.



6. Slip iSMP4 into the slot in the back of the WiCase Base until you hear a click.



Configuring iSMP4 to connect via USB-WiCase Mode

1. Press the F button four times.
2. The iSMP4 will beep and display Change Port.
3. Select F2 to see an interface selection menu.
4. Use the F2 and F3 buttons to navigate up and down on the menu.
5. Highlight USB-WiCase and press the green button to Select.
6. Power down the iSMP4 to save the setting.
