Description: Learn the Kitchen/Receipt Printer character amount limitations with different font settings on SkyTab POS software.
Note: Certain characters, such as the seat number (S1) or item number, must be included and cannot be deactivated due to software constraints. In the kitchen printout, the first column will showcase the order without the order number, consisting of 44 characters, the second, third, etc., will each contain 42 characters per line.
Epson TM-M30 (Thermal Printer)
Font Size | Characters Per Line (Item Name Limit) |

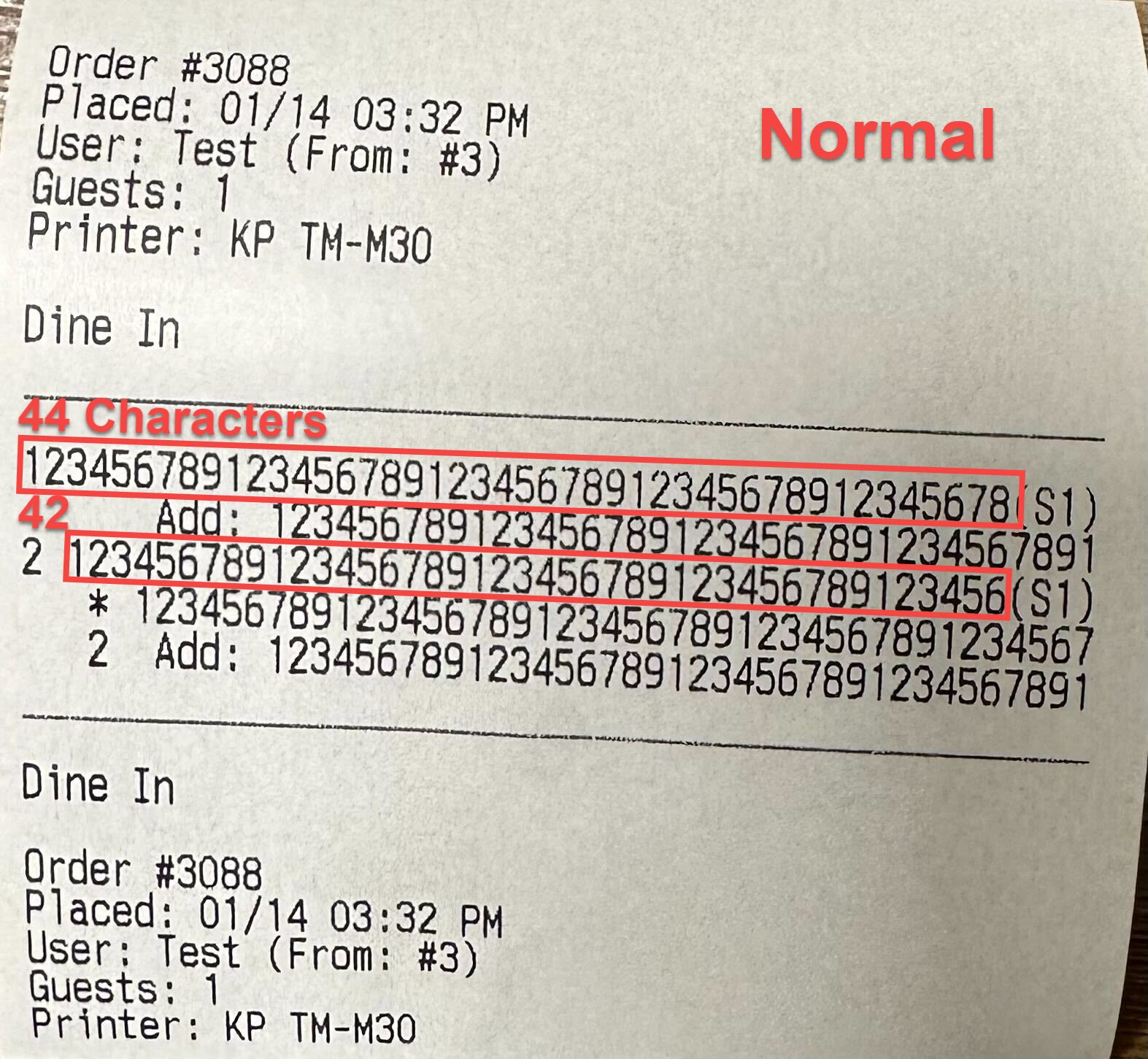

Normal | 48 (42-44) |

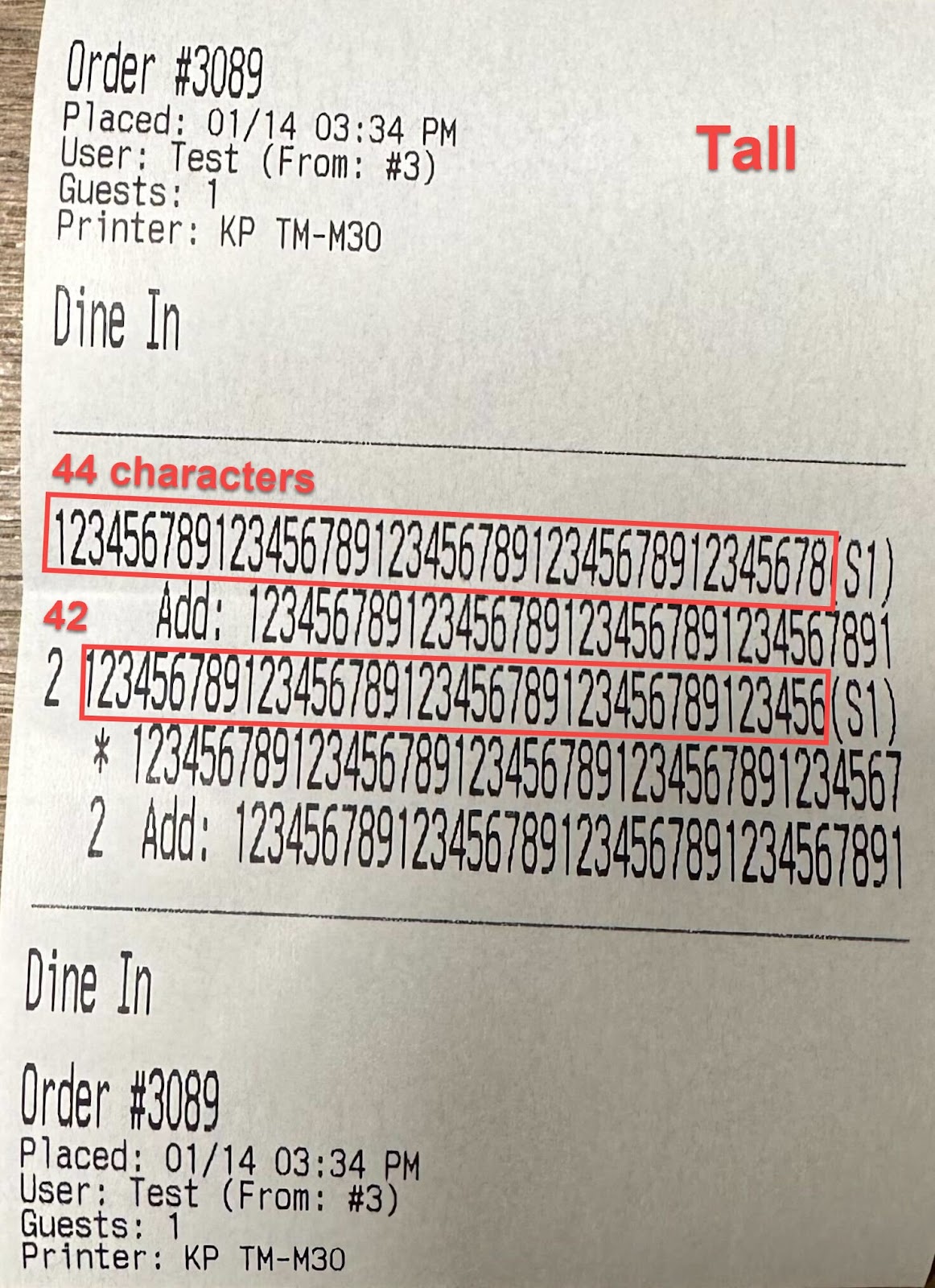

Tall | 48 (42-44) |

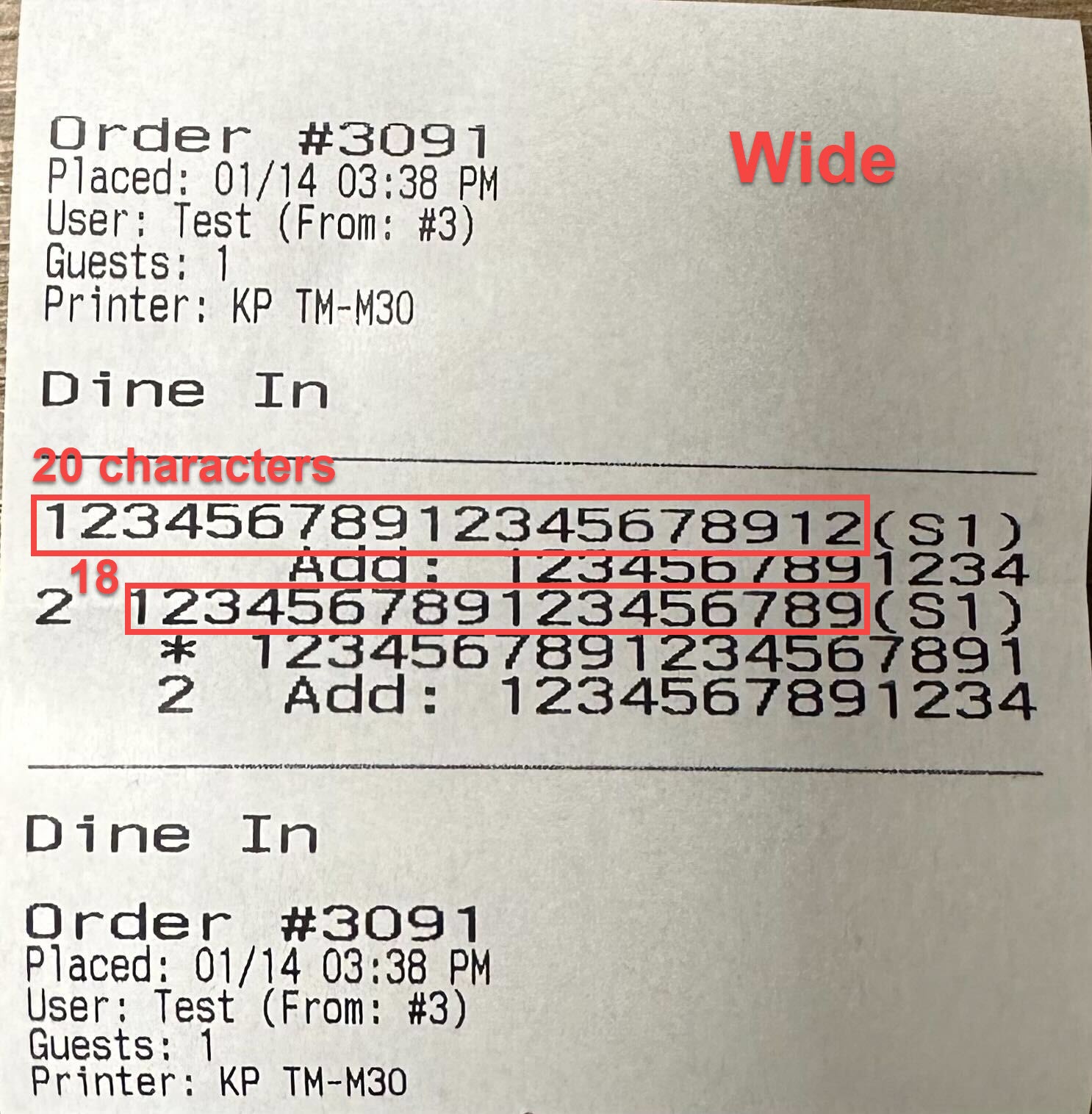

Wide | 24 (18-22) |
Large | 24 (18-22) |
Epson Dot Matrix Remote (TM-U220B) Printer
Font Size | Characters Per Line (Item Name Limit) |

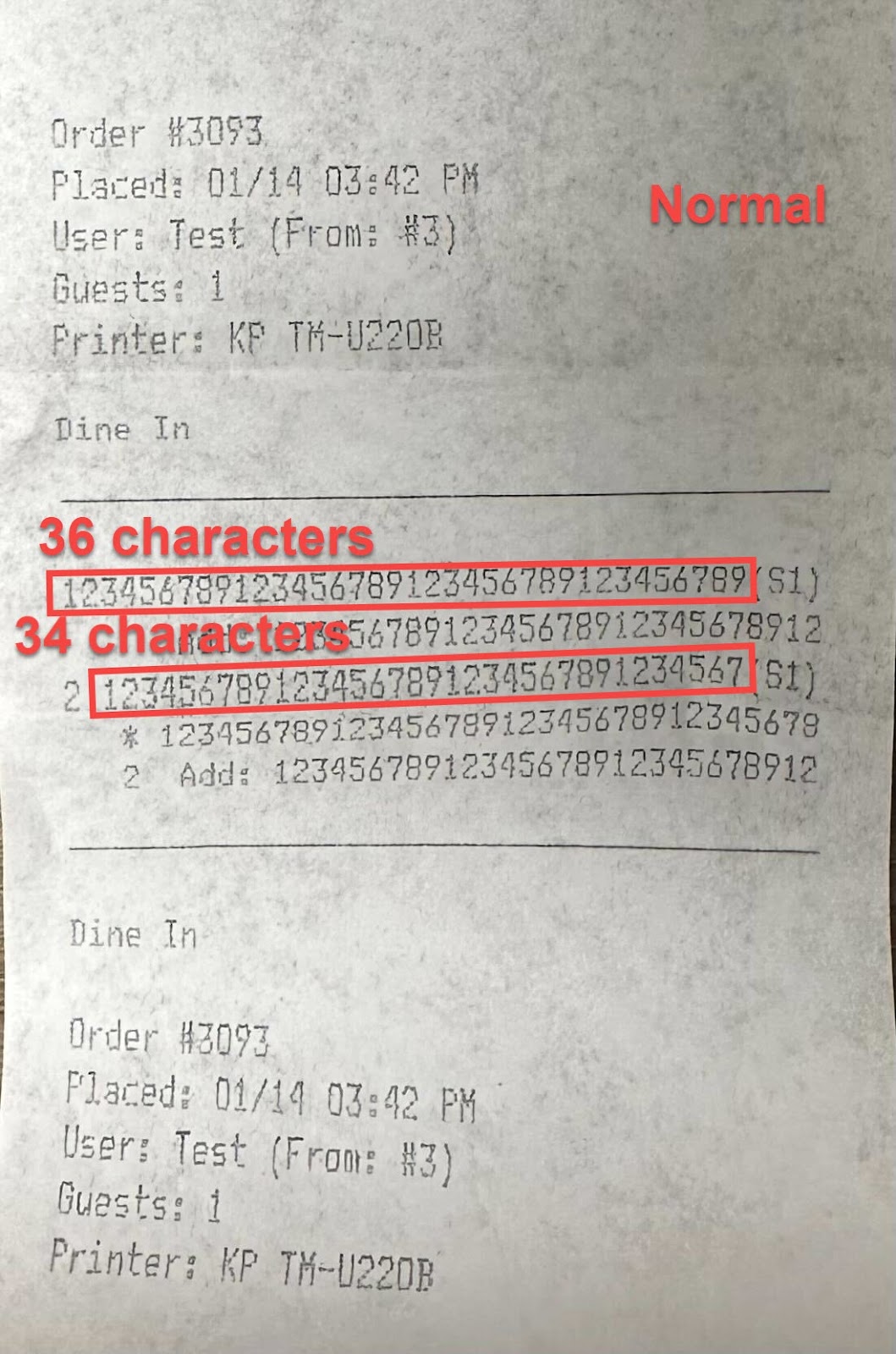

Normal | 40 (34-36) |

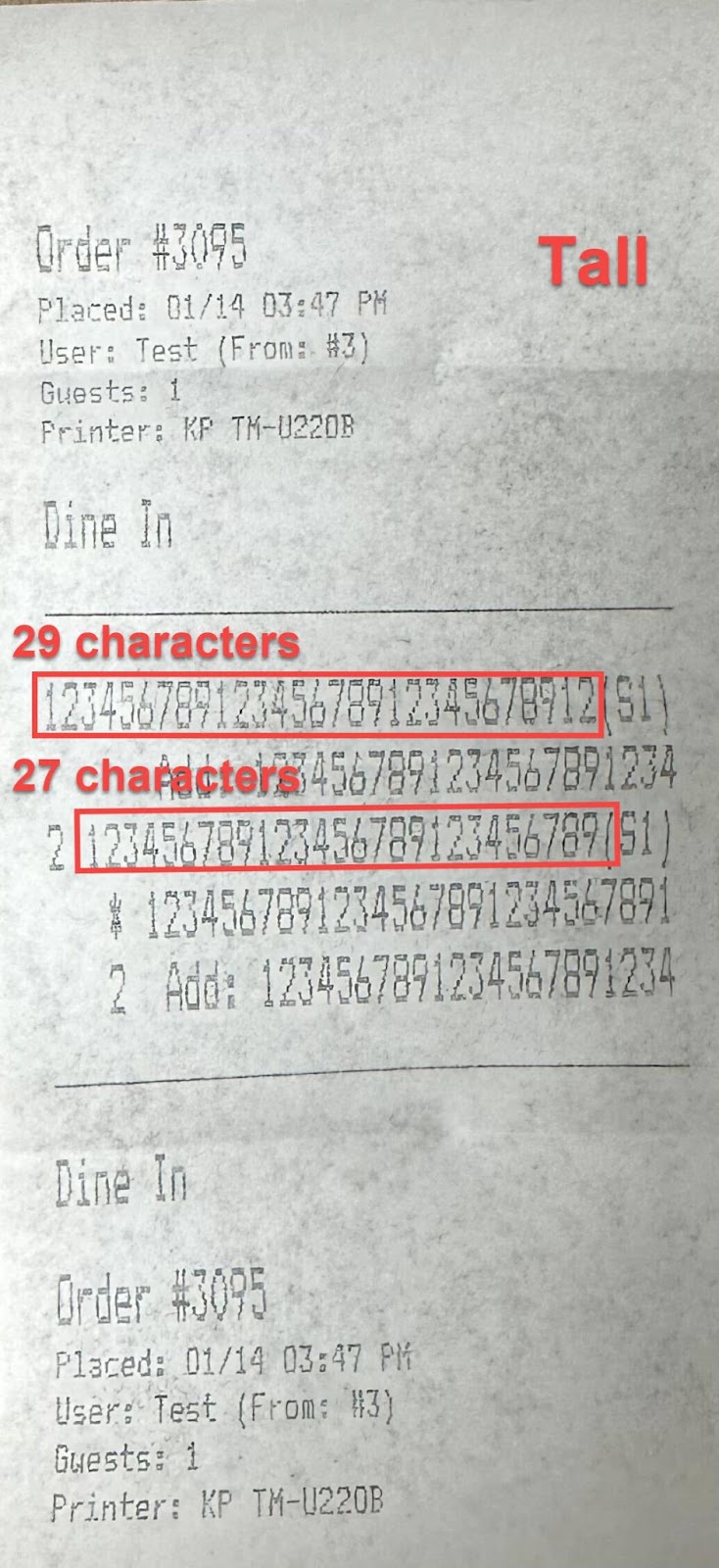

Tall | 33 (27-29) |

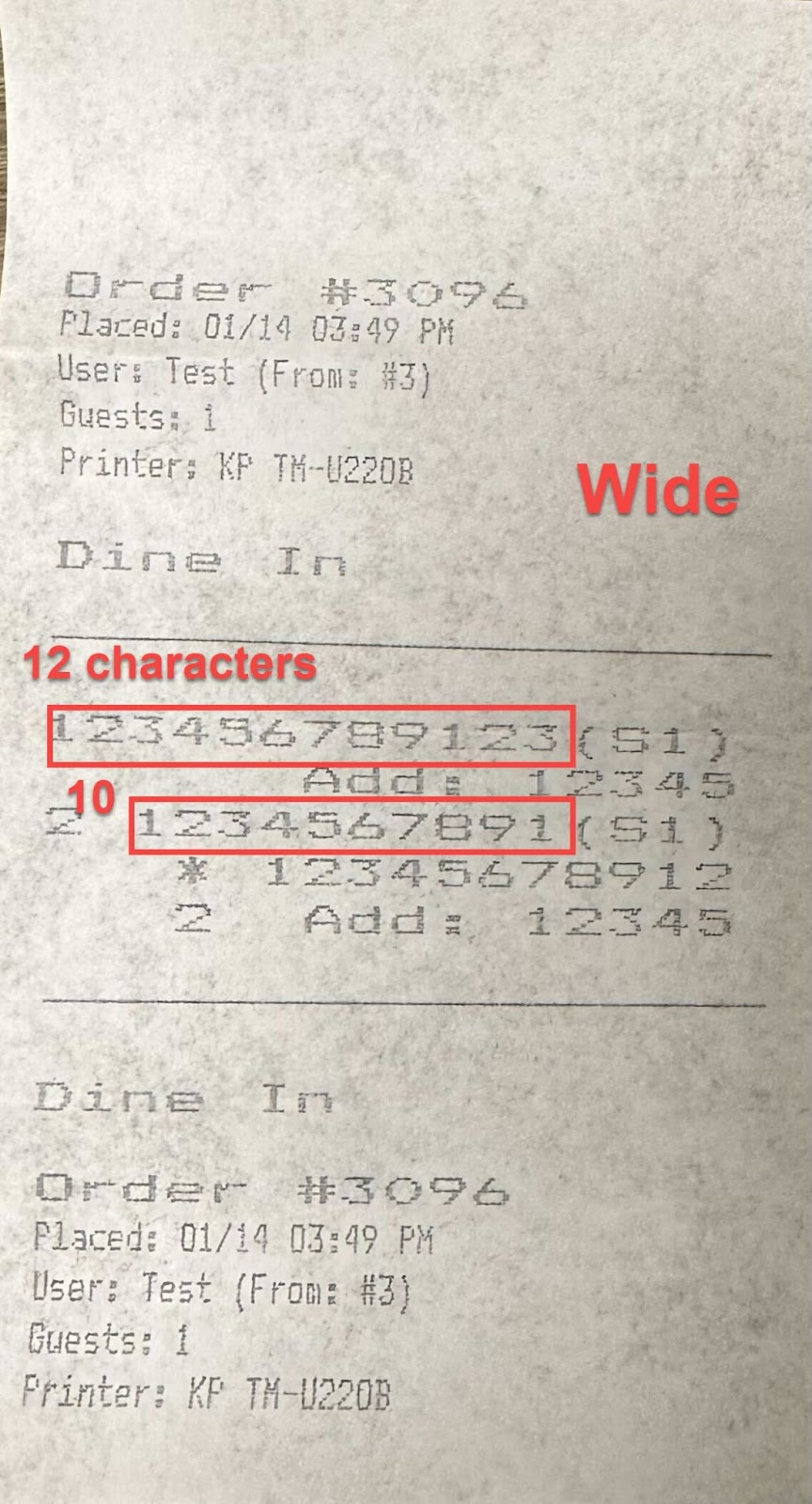

Wide | 16 (10-12) |

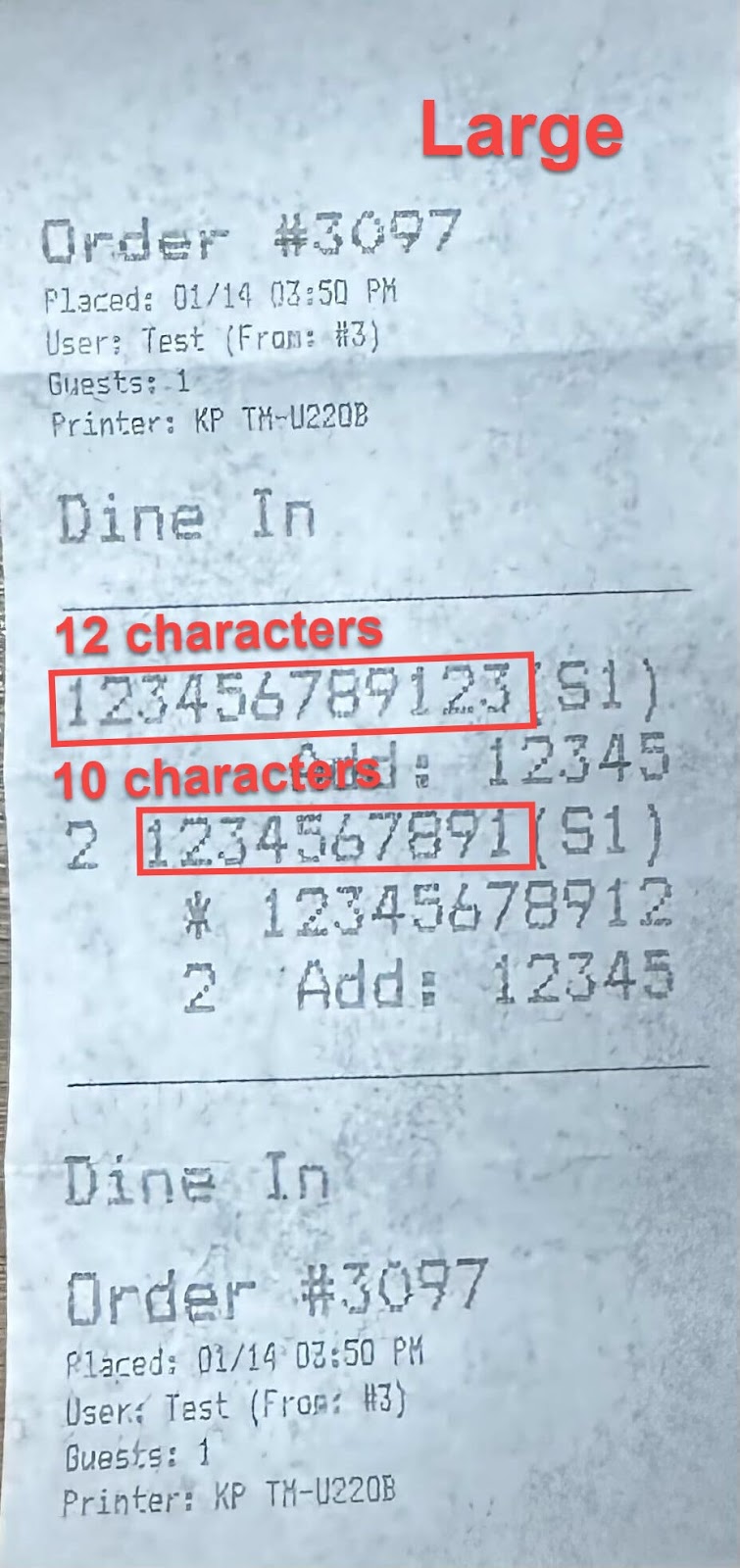

Large | 16 (10-12) |
