Integrated Customer Display Setup in Hospitality

Description: Review how to set up the Hospitality software to work in conjunction with the Integrated Customer Display available for the Elite II POS system.

---

To begin, install the display and power on the Hospitality system.

1. Start the Hospitality Brain.
2. Start the Workstation application.

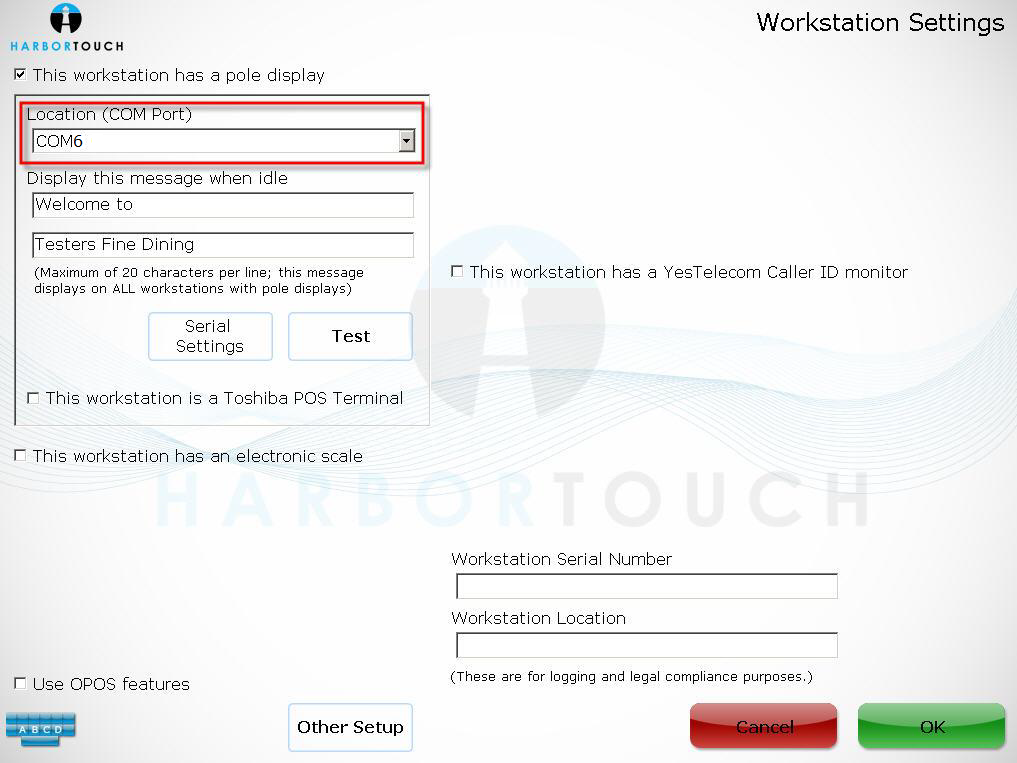

3. Navigate to the Manager Screen > System > This Workstation.
4. Setup the Pole Display in the software.
   • Select the appropriate Com port:
     • Onyx will be Com 2
     • Onyx Pole Display Information will be Com 2
     • Elite A will be Com 4
     • Elite S will be Com 3
     • Elite 2 will be Com 6
   • Enter the Default Display Message:
     • Welcome To (on the first line – maximum 20 characters including spaces)
     • DBA name (on the second line – maximum 20 characters including spaces)
   • Click Okay.
5. Close Workstation Application and restart Brain.

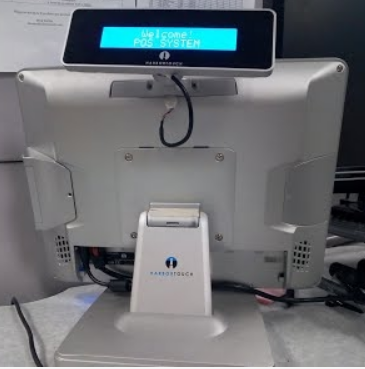

Pole Display should now display the Default Display Message set up in the steps above.
