CallerID Splitter and Duplicator Identification

Description: Identify the different types of CallerID splitters and duplicators in the article below.

---

Internal:

For more information on installing and configuring CallerID, visit the following articles:

• QSR: CallerID Configuration & Setup
• Elpopup & Elconfig Caller ID Tools

Duplicators

Duplicators duplicate a phone line. Essentially, it duplicates one phone signal to multiple signals. Although these duplicators pictured perform the same function, the connector on the back is different.

• A quick way to tell the difference between a duplicator and a splitter is the wires.
• A duplicator has four wires, and a splitter has two.

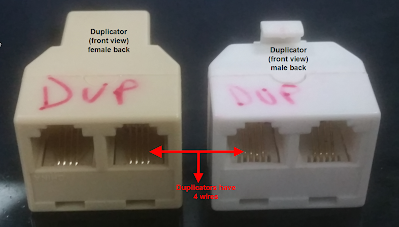

This is a front view of a male and female duplicator.

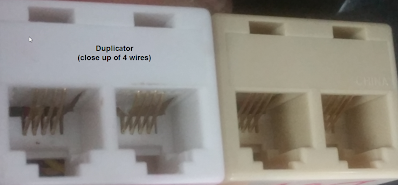

Close-up view of the four duplicator wires.

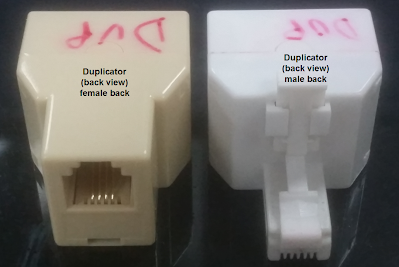

Back view of duplicators. Notice the connectors, one being male and the other female.

Splitters

A Splitter splits one connection into multiple connections.

• Useful when you have two lines on one phone cable that needs to be split for the caller ID unit to work properly.
• A quick reference would be to look at the wires in the device.

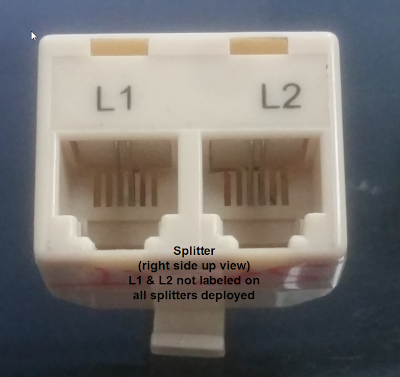

Right side up splitter. Alternate view of the two wires.
