Configure the SkyTab POS Cash Drawer

Description: Learn how to configure the SkyTab POS cash drawer.

---

Note: If you haven’t yet connected your cash drawer, install and connect it first before configuring it in the POS system.

To configure the cash drawer:

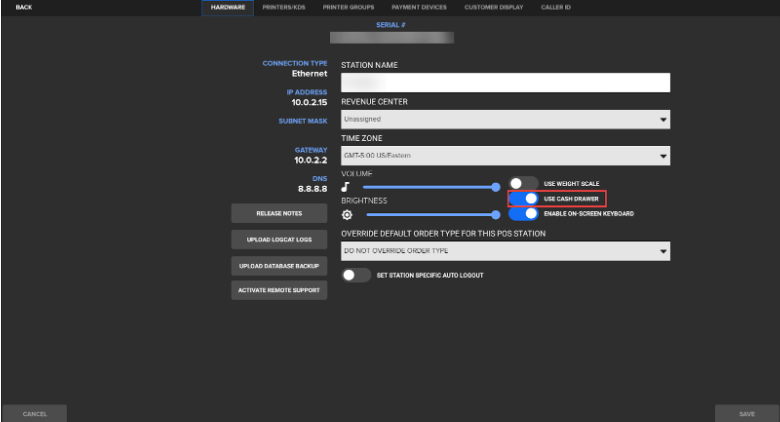

1. On SkyTab POS, select Manager > Settings > Hardware.
2. Enable the Use Cash Drawer toggle.
3. Select Save.
4. Verify Receipt Printer is configured and assigned to the POS Terminal. For more information, visit the Configure the Receipt Printer article.

Verify Functionality

• When both the USB printer and cash drawer are installed correctly and the drawer is configured on the POS, receipts should print, and the cash drawer should open.
• If the drawer opens via the secret menu, users with the correct permissions can open it normally. Permissions are detailed in the Cash Drawer Functions article.

Dual Cash Drawer Setup

1. On SkyTab POS, navigate to Manager > Settings > Hardware > Printers/KDS.
2. Select the printer that has both cash drawers connected.

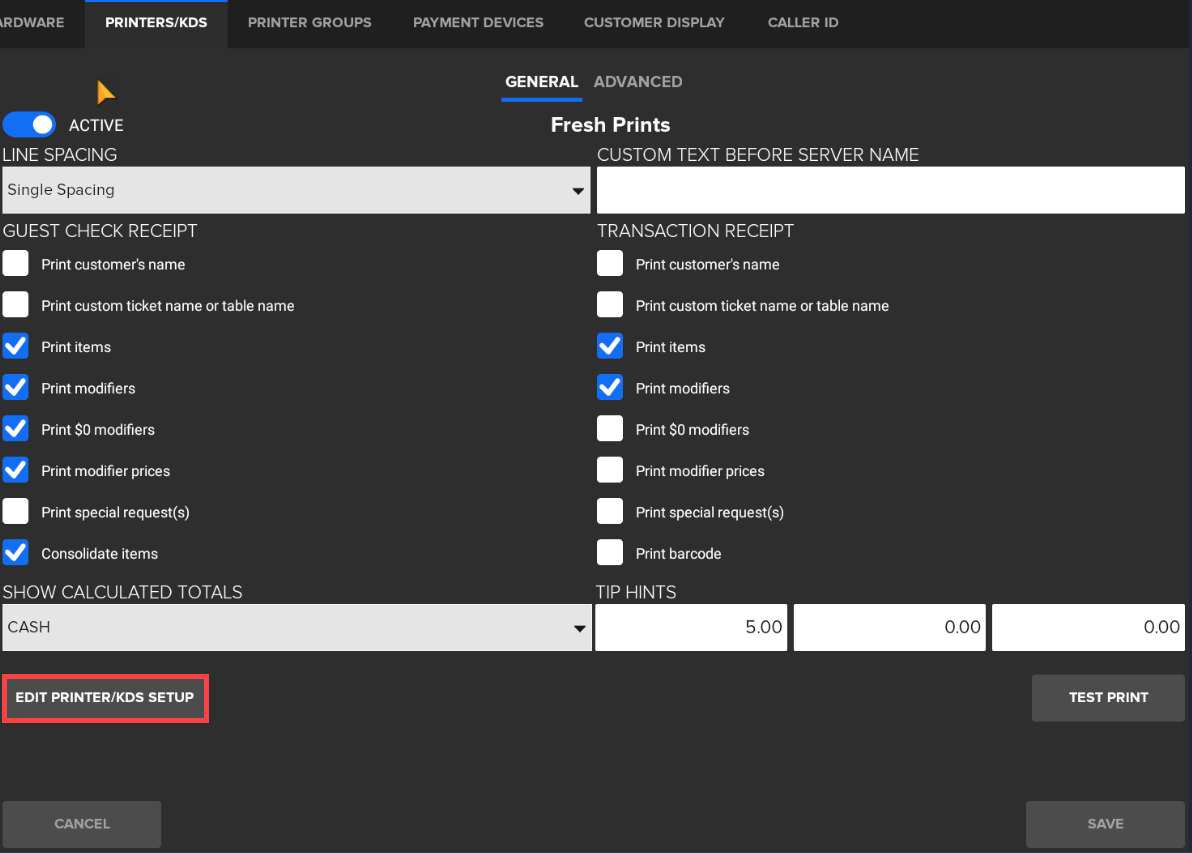

3. Select Edit Printer/KDS Setup.
4. Select the appropriate station from the dropdown for Assigned Station, as noted on your display (Step 3 in Hardware Setup), and select Ok, then Save.
5. Go to the Advanced tab.

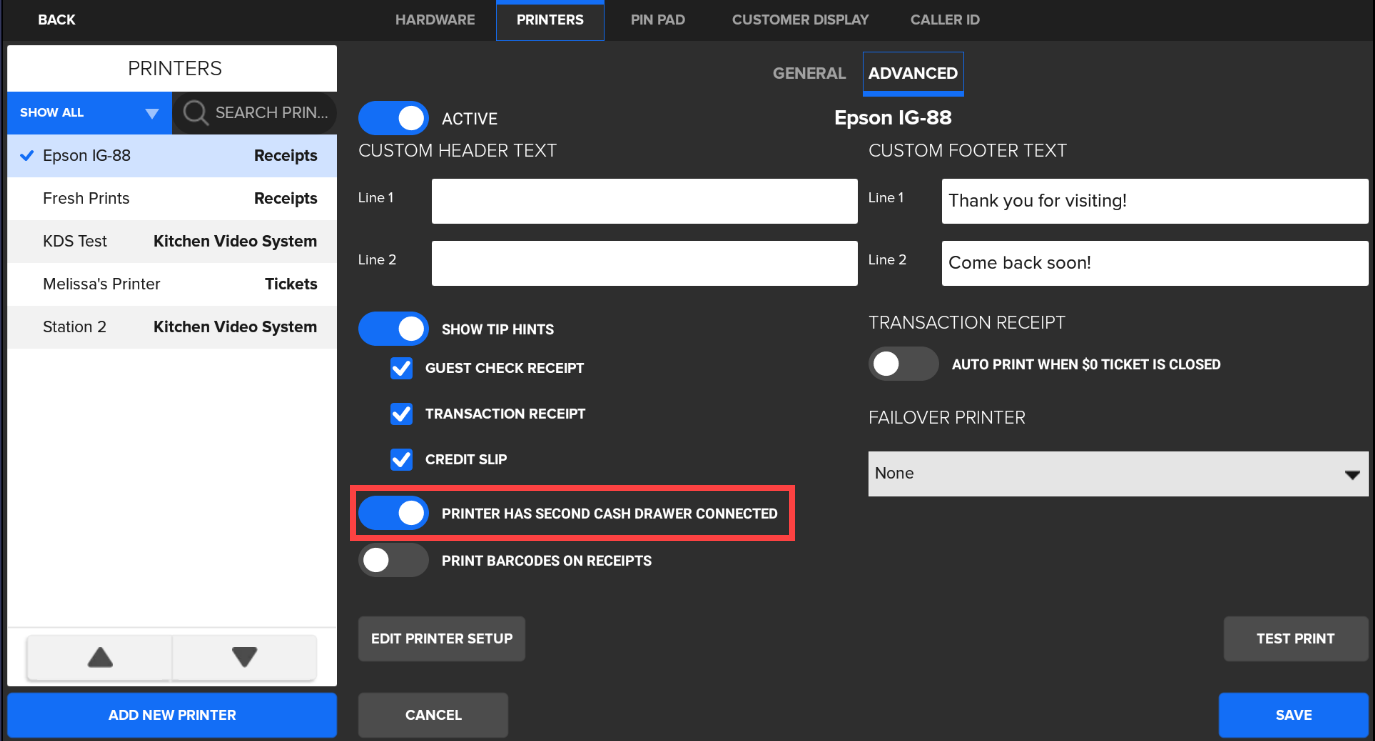

6. Slide the toggle to enable Printer Has Second Cash Drawer Connected.

7. Select Save.

The next time a user clocks in, they are presented with an option to choose either Cash Drawer 1 or Cash Drawer 2.
