Install the SkyTab POS Cash Drawer

Description: Learn the steps to install a single or dual cash drawer on SkyTab POS.

---

Note: After installing your cash drawer, configure it to ensure it is set up correctly for use.

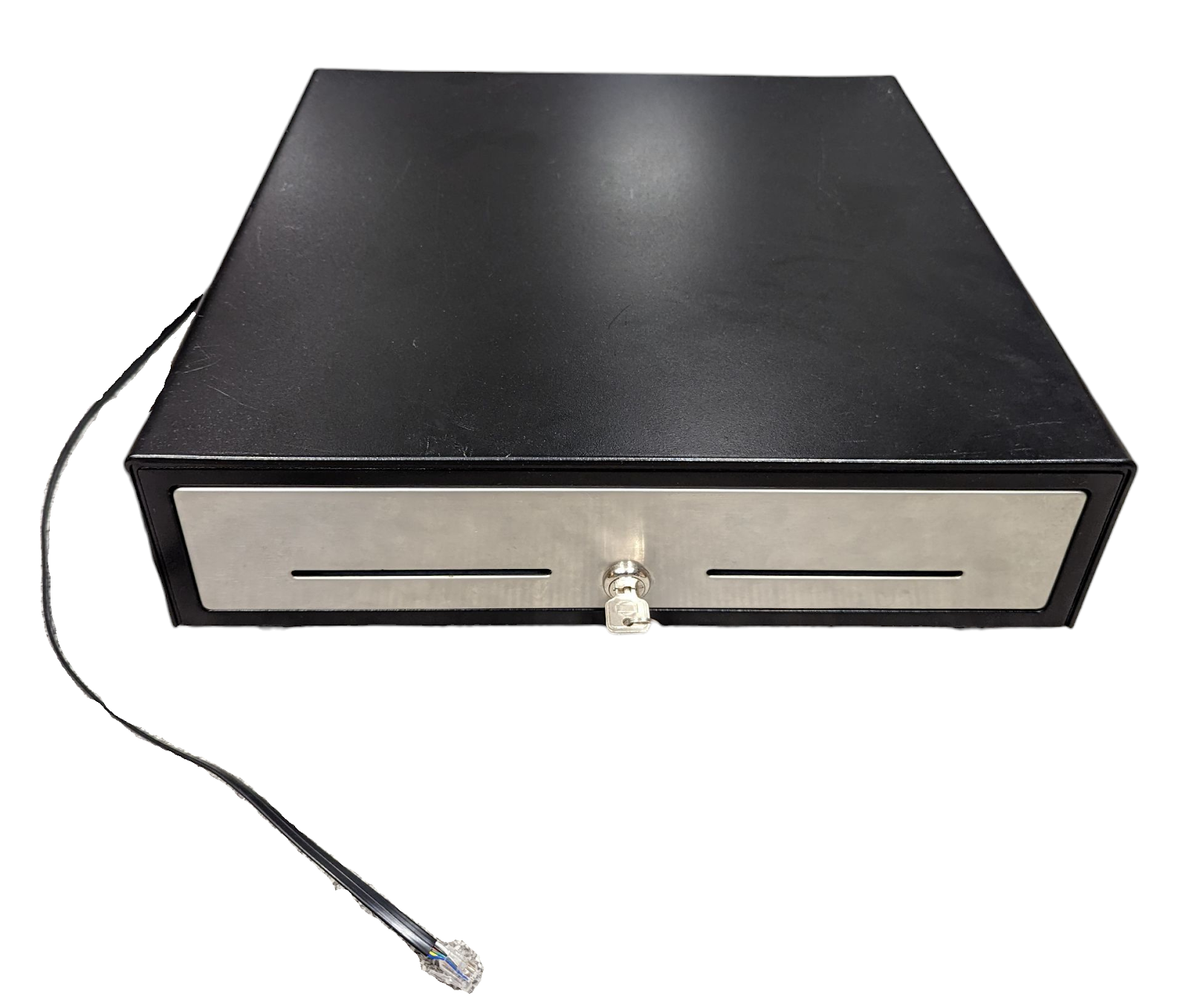

Cash Drawer Hardware

The hardware consists of:

• Cash drawer
• A set of keys
• Integrated cash drawer cable


Cash Drawer Installation

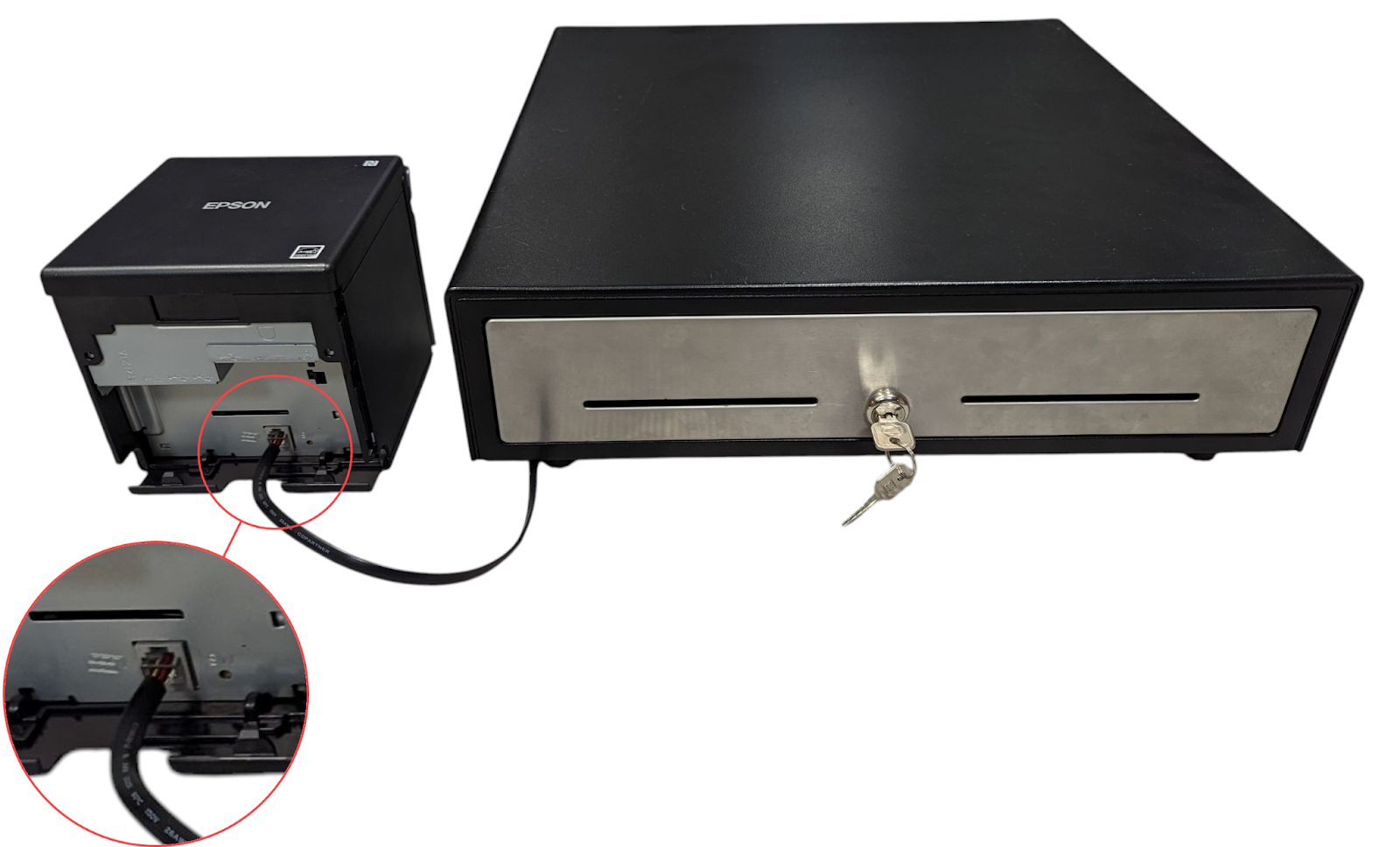

Insert the cash drawer cable into the designated slot on the back of the receipt printer.

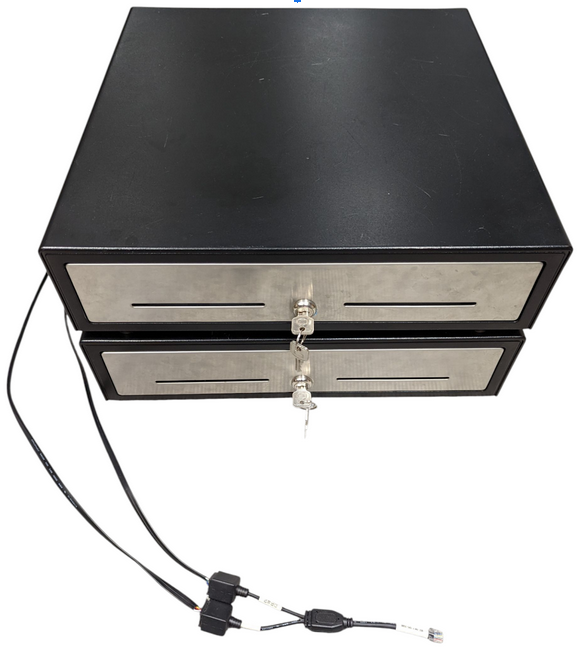

Dual Cash Drawer Installation

1. Locate the cash drawer splitter.

2. Connect both cash drawers to the dual connectors.

3. Connect the dual cash drawer connector to the receipt printer.

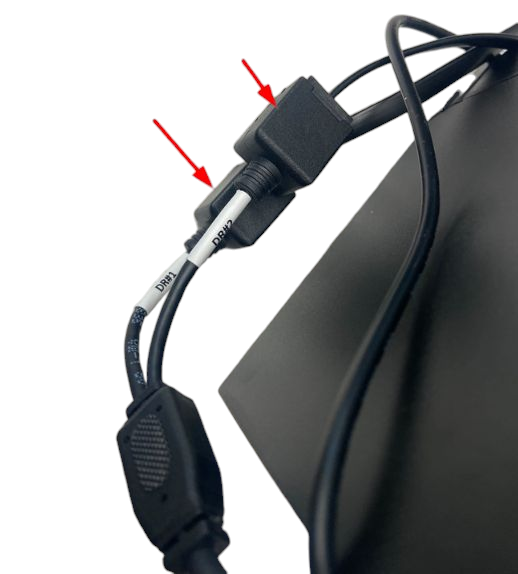

4. Connect DR#1 to Drawer 1 and DR#2 to Drawer 2 on the splitter.
