General Information | Bundle | Documentation | Additional Photos
General Information
Connectivity |
4G, WiFi, Bluetooth, LAN | |
Accepted card types |
EMV chip, magnetic stripe, NFC | |
Dimensions |
Length: 12.2 inches Width: 12.1 inches Height: 5.5 inches |
|
Screen |
E700: 12.5" IPS 1920 x 1080 Pixels FHD Touch Screen Q20L Payment Module: 4.3" TFT WQVGA 480 x 272 Pixels |
|

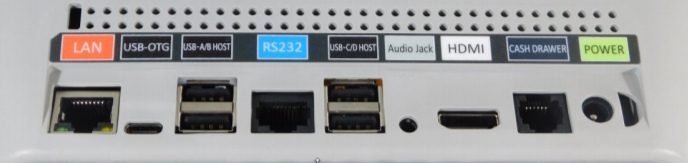

Ports |
4 Type-A USB Host, 1 Type-C USB OTG 1 Cash Drawer 1 Ethernet 1 RS232 1 Audio Jack 1 Micro USB in Q20L Payment Module |
|
Receipt Paper Size |
2 1/4" x 60' thermal paper | |
Power Supply |
Input: 100~240VAC, 50Hz / 60Hz, 1.5A Max Output: 24VDC, 2.7A |
Bundle
The standard bundle comes with the following items:
- E700
- Q20L Payment Module
- 1 10ft LAN cable
Documentation
E700 Data Sheet
E700 Reference Guide

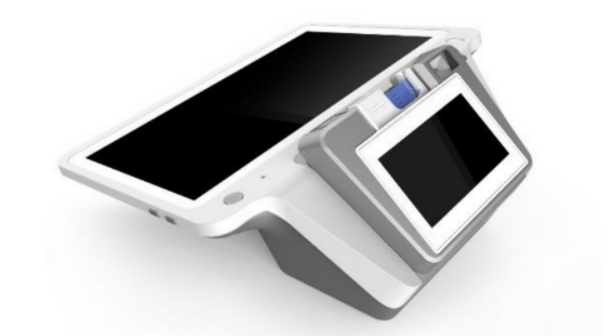

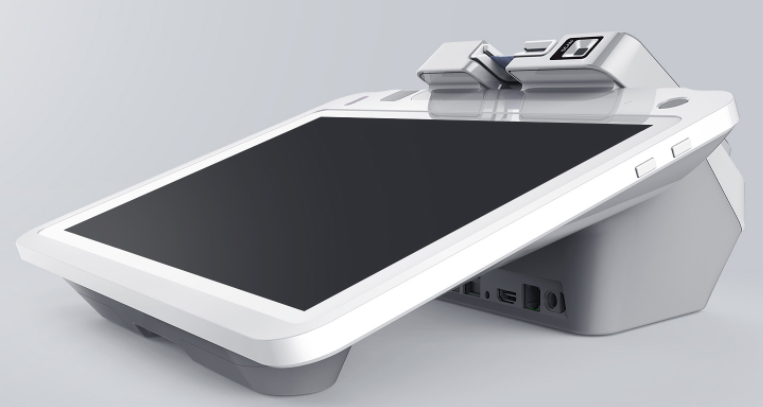

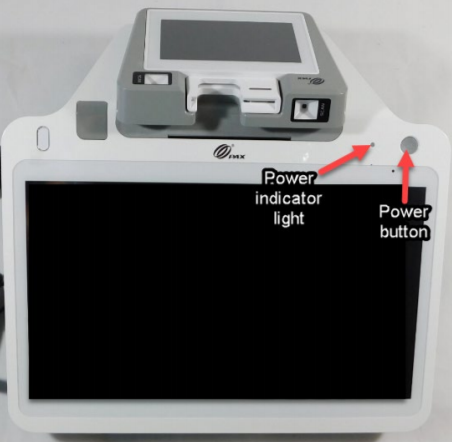

Additional Photos
