PAX D210 Specifications

General Information | Bundle | Additional Photos

General Information

Connectivity	Bluetooth 4.0 / WiFi 3G (WCDMA) (optional)
Accepted card types	Magnetic stripe, EMV chip, & Contactless
Dimensions	Length: 162.5mm Width: 80mm Height: 56mm
Screen	2.8 inch TFT color LCD, 320 x 240 pixels
Keypad	10 numeric & 8 function keys
Receipt Paper Size	2 1/4" x 60'  thermal paper
Power Supply	Input: 100 - 240V AC, 50 / 60 Hz, 0.3A Output: 9VDC, 1A

Bundle

The Standard bundle comes with the following items:

• PAX D210 terminal
• Power Adapter
• One roll of thermal receipt paper

Documentation

• PAX D210: QRG

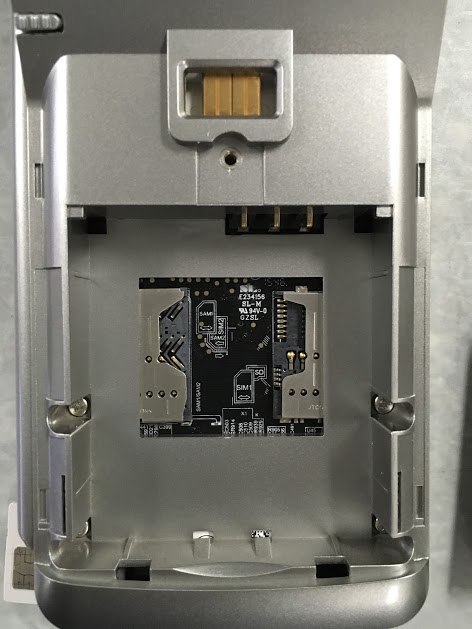

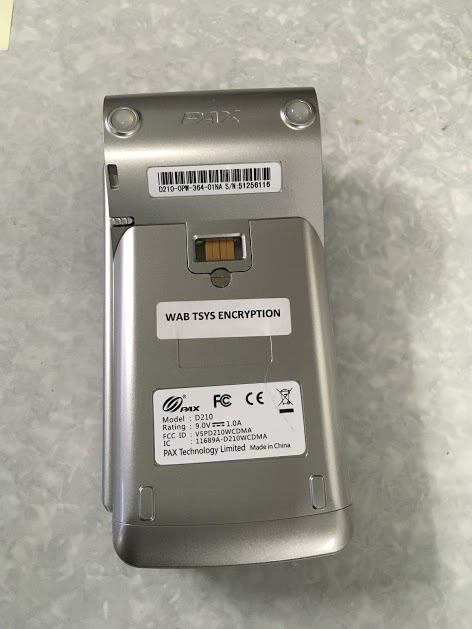

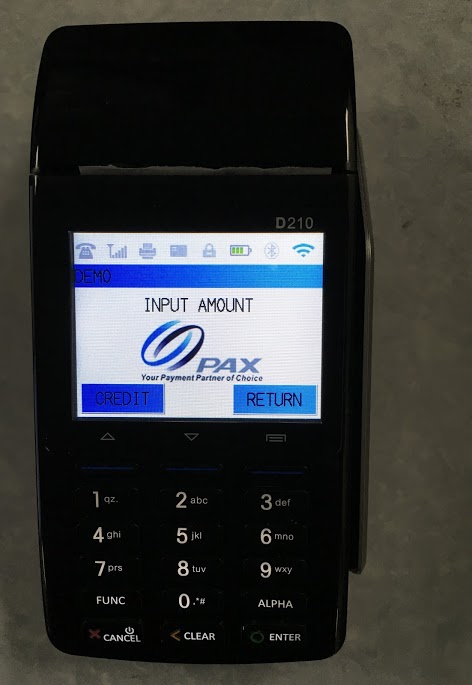

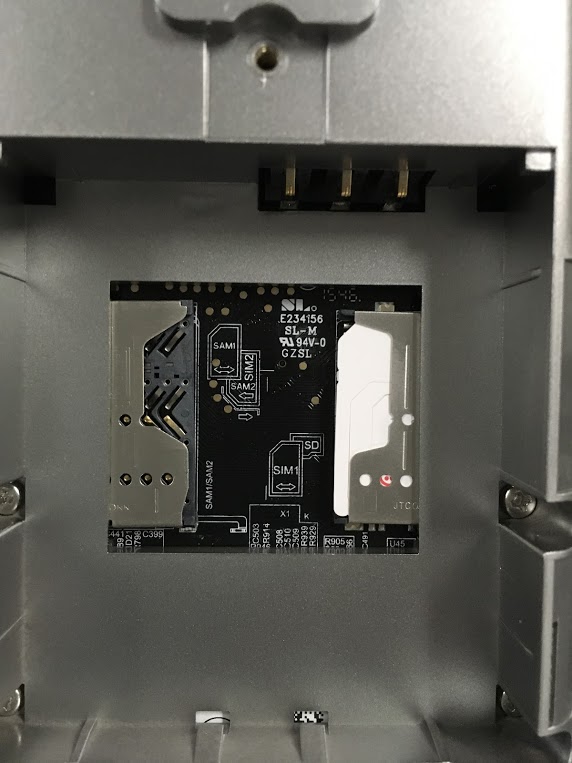

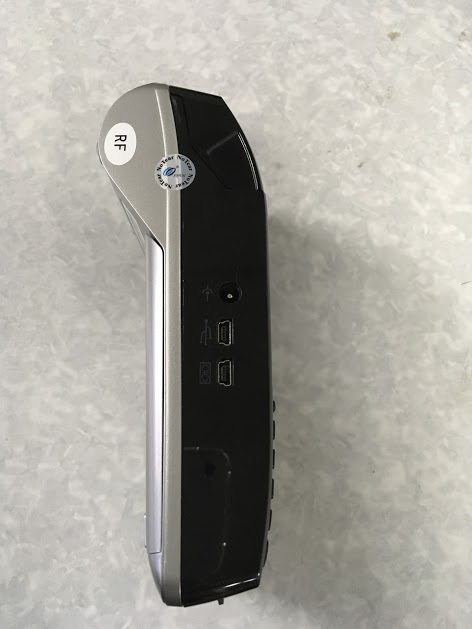

Additional Photos
