Verify The Device Serial Number on Ingenico Telium Devices

Description: During setup or troubleshooting, there may be circumstances where you must verify the Device Serial Number on the physical device to ensure it matches what is configured in Lighthouse Transaction Manager and/or with the Processor.

---

1. Reboot the PIN Pad.

Model Type	Reset Procedure
iSC250/480:	Press and Hold the Clear (Yellow) and the Minus ( - ) Keys until the device chirps.
iPP320/350: iWL252/258: iCMP/iSMPv4:	Press and Hold the Clear (Yellow) and the Period ( . ) Keys until the device chirps.

2. Wait for the PIN Pad to display the Retail Base (RBA) version information screen.
3. On the Ingenico Copyright screen, press 2, 6, 3, 4, and Enter. Shortly after this, the device will ask you to either press (+) Plus or (F) Function for the menu. If the device requests (F) Function for the menu, but there is no (F) key, simply press (+) Plus instead.

   If successful, the Functions menu should display. If it does not, please reboot again and try performing the code entry again.
4. Navigate to the TSA menu and press Enter.

Model Type	Navigation Controls
iSC250/480:	Use the [+] and [-] keys to navigate and select [Enter]
iPP320/350: iWL252/258: iCMP/iSMPv4:	Use the [F2] and [F3] keys to navigate and select [Enter]

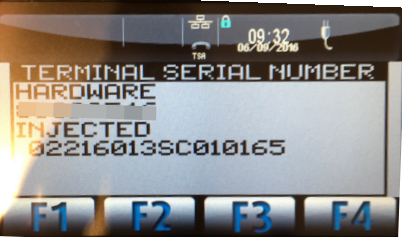

5. Select Terminal Serial #.
6. Record the 8-digit number under Hardware.
