Configure Remote Epson Printer IP Using the EpsonNet Application on SkyTab POS

Description: Learn how to configure a remote Epson printer IP using the EpsonNet application on SkyTab POS.

---

Configure Remote Printers

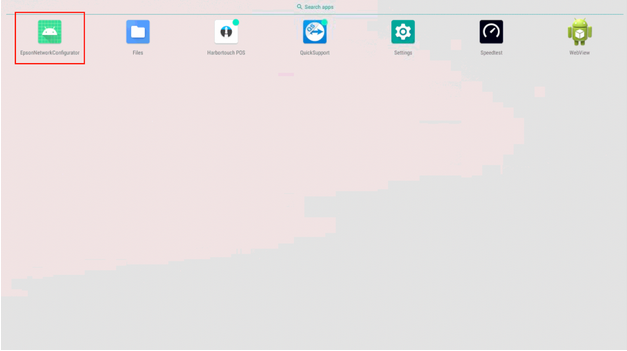

1. Go into Android Settings and use the search bar to search 'Epson.'
2. Select the Epson Network Configurator and open it.

3. Select the green refresh button on the bottom right of the page. Then, select the printer you want to configure.
4. The first remote printer will be set with an IP of 192.168.213.201.

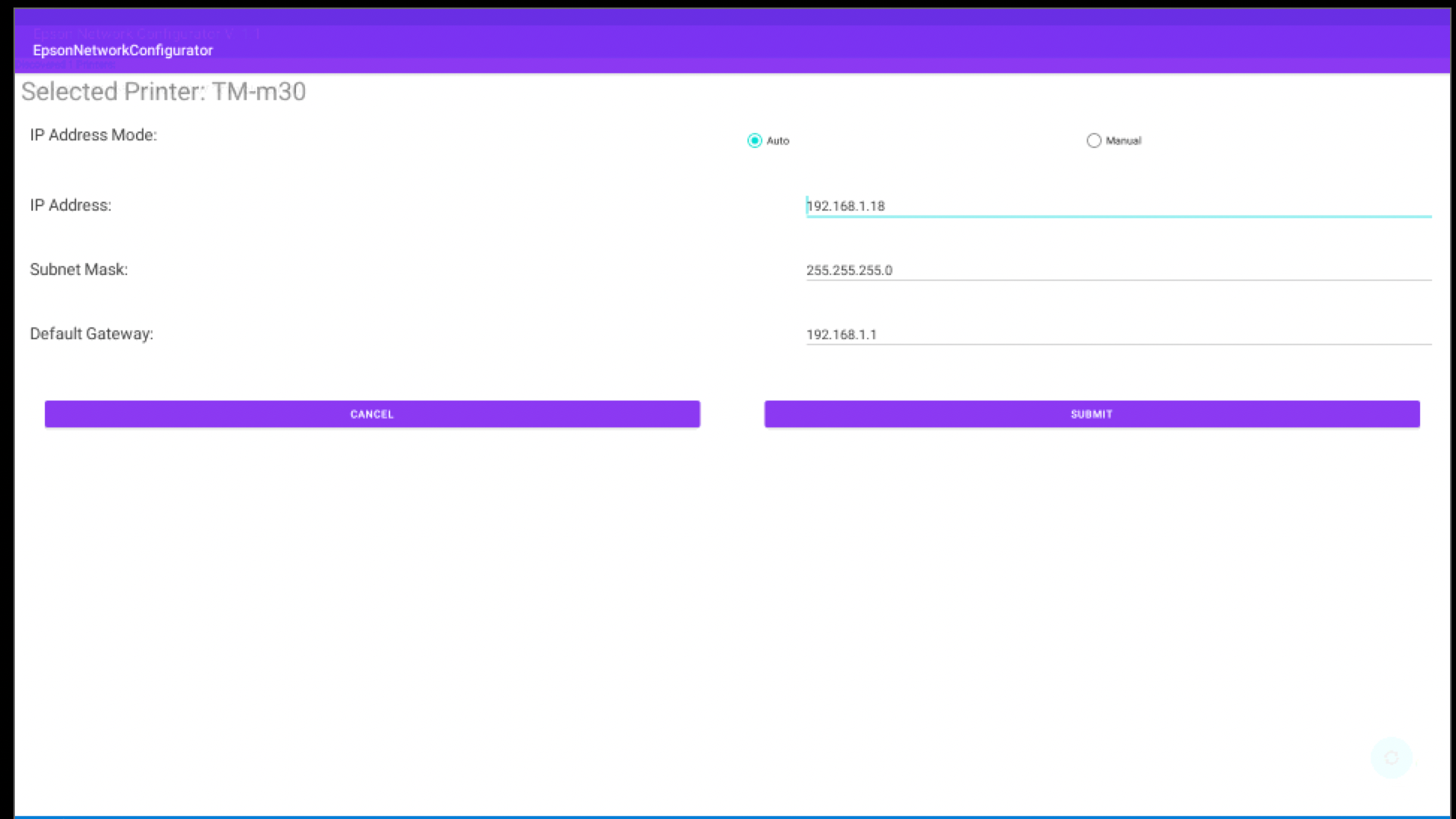

5. Choose the Manual radio button, set the IP, then select SUBMIT.

6. If you have a 2nd printer, set it with 192.168.213.202, etc.

Add a New Printer

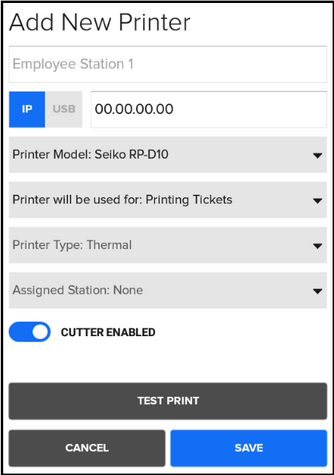

To add a new printer to the system, select Add New Printer in the lower-left corner of the screen. This generates a pop-up that takes you through the setup options of the printer:

• Printer Name (required): The unique name of the printer.
• Connection Type: Specify if the printer uses a network or USB to communicate.
• Printer Model: Model of the printer being attached (i.e., Epson, SNBC, or RP-D10).
• Printer Function: Determine how the printer is used.
• Print Type: Designate if the printer is a thermal or dot matrix printer.
• Assigned Station: Allow the user to select which station the printer is assigned to.
• Do NOT assign a printer to a particular station if it is a Remote Printer; the system does this.
• Enable Cutter: Specify if tickets are cut after each receipt.
• Test Print: Allow the user to verify that the printer works correctly.
